Punching shear at the basic control perimeter

Basic control perimeter at 2d, punching shear stress with the factor beta, and the resistance without punching reinforcement. Reference: EN 1992-1-1 6.4.2-6.4.4.

Open this sheet in Equation Pad Browse the Library

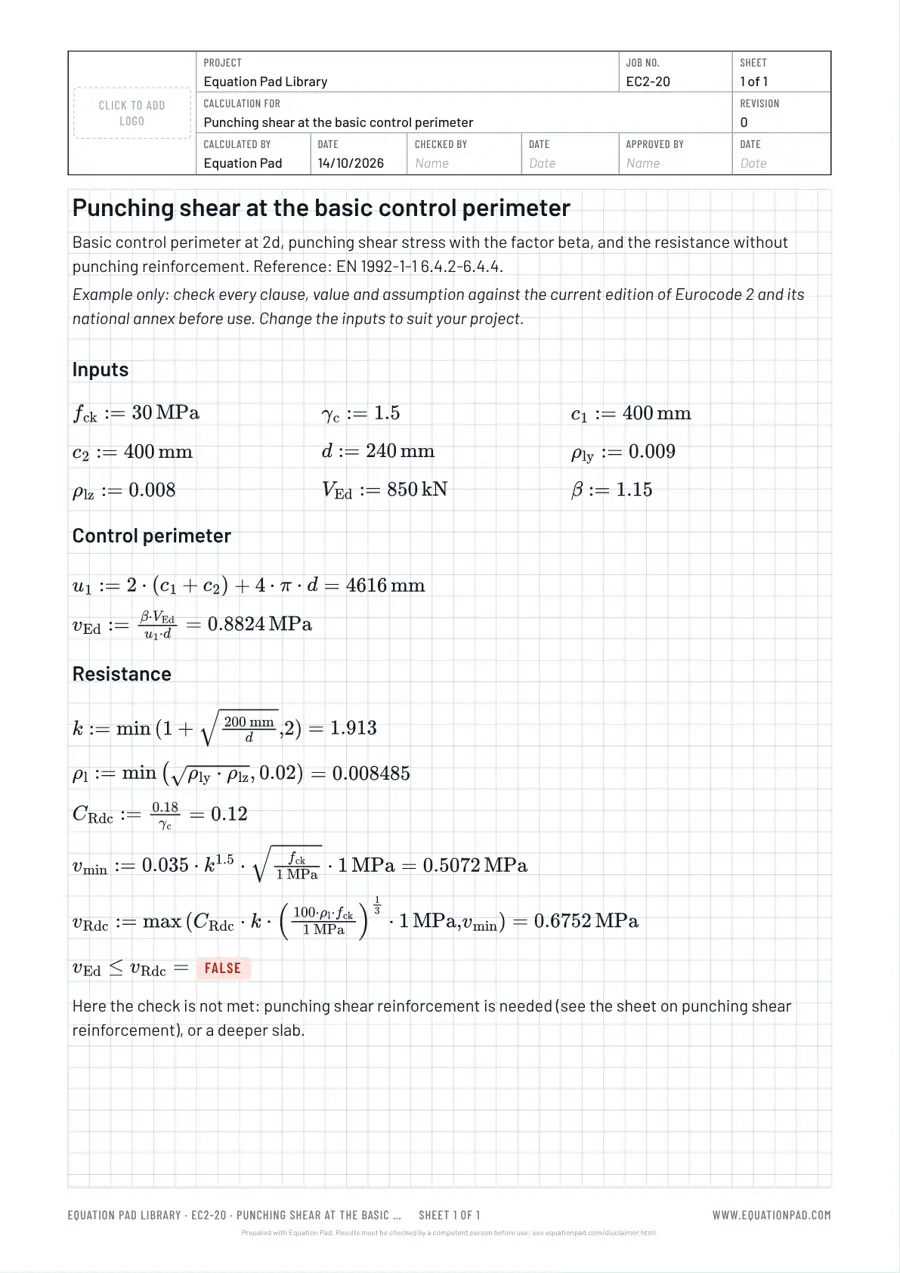

Punching shear at the basic control perimeter: worked example sheet in Equation Pad with typeset equations and results.

Example only. This sheet shows one way to set out the check. It is not endorsed by the bodies that publish the design codes and does not reproduce them. Check every clause, value and assumption against your own copy of the current edition of Eurocode 2 and its national annex before you use it, and have the result checked by a competent person. See the disclaimer.

The calculation, line by line

Every line below is typed into Equation Pad exactly as shown; the app typesets it, works out the value with its units and shows checks as TRUE or FALSE. Change any input and everything below it updates.

# Inputs
f_ck := 30 MPa
gamma_c := 1.5
c_1 := 400 mm
c_2 := 400 mm
d := 240 mm
rho_ly := 0.009
rho_lz := 0.008
V_Ed := 850 kN
beta := 1.15

# Control perimeter
u_1 := 2*(c_1 + c_2) + 4*pi*d = mm
v_Ed := beta*V_Ed/(u_1*d) = MPa

# Resistance
k := min(1 + sqrt(200 mm/d), 2) =
rho_l := min(sqrt(rho_ly*rho_lz), 0.02) =
C_Rdc := 0.18/gamma_c =
v_min := 0.035*k^1.5*sqrt(f_ck/(1 MPa))*1 MPa =
v_Rdc := max(C_Rdc*k*(100*rho_l*f_ck/(1 MPa))^(1/3)*1 MPa, v_min) =
v_Ed <= v_Rdc =
# Here the check is not met: punching shear reinforcement is needed (see the sheet on punching shear reinforcement), or a deeper slab.

How to use this example

  1. Click Open this sheet in Equation Pad. It opens as a new worksheet in your browser; nothing is installed.
  2. Change the inputs at the top to those of your project.
  3. Check the clauses and coefficients against the code, add your own checks, and save the sheet or export a PDF with your title block.
