Two-way slab with simply supported edges

Bending moments in both directions of a two-way slab from the moment coefficients, and the steel in each direction. Reference: IS 456:2000 Annex D (D-2), Table 27.

Open this sheet in Equation Pad Browse the Library

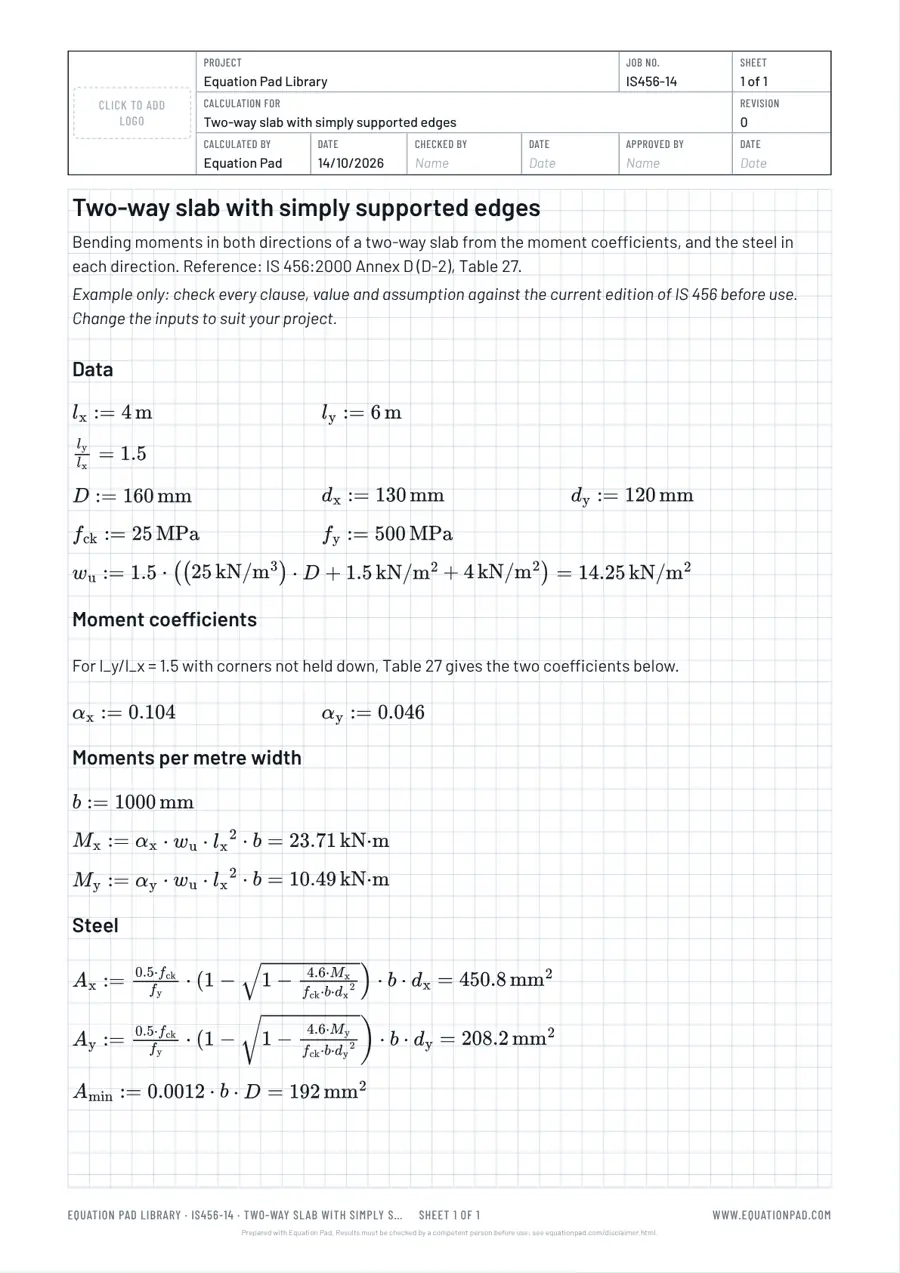

Two-way slab with simply supported edges: worked example sheet in Equation Pad with typeset equations and results.

Example only. This sheet shows one way to set out the check. It is not endorsed by the bodies that publish the design codes and does not reproduce them. Check every clause, value and assumption against your own copy of the current edition of IS 456 before you use it, and have the result checked by a competent person. See the disclaimer.

The calculation, line by line

Every line below is typed into Equation Pad exactly as shown; the app typesets it, works out the value with its units and shows checks as TRUE or FALSE. Change any input and everything below it updates.

# Data
l_x := 4 m
l_y := 6 m
l_y/l_x =
D := 160 mm
d_x := 130 mm
d_y := 120 mm
f_ck := 25 MPa
f_y := 500 MPa
w_u := 1.5*((25 kN/m^3)*D + 1.5 kN/m^2 + 4 kN/m^2) =

# Moment coefficients
# For l_y/l_x = 1.5 with corners not held down, Table 27 gives the two coefficients below.
alpha_x := 0.104
alpha_y := 0.046

# Moments per metre width
b := 1000 mm
M_x := alpha_x*w_u*l_x^2*b = kN*m
M_y := alpha_y*w_u*l_x^2*b = kN*m

# Steel
A_x := 0.5*f_ck/f_y*(1 - sqrt(1 - 4.6*M_x/(f_ck*b*d_x^2)))*b*d_x = mm^2
A_y := 0.5*f_ck/f_y*(1 - sqrt(1 - 4.6*M_y/(f_ck*b*d_y^2)))*b*d_y = mm^2
A_min := 0.0012*b*D = mm^2

How to use this example

  1. Click Open this sheet in Equation Pad. It opens as a new worksheet in your browser; nothing is installed.
  2. Change the inputs at the top to those of your project.
  3. Check the clauses and coefficients against the code, add your own checks, and save the sheet or export a PDF with your title block.
