Principal stresses and Mohr’s circle

From a plane stress state σ_x, σ_y, τ_xy: the centre and radius of Mohr’s circle, the principal stresses, the angle of the principal planes, the maximum shear stress and the von Mises equivalent stress.

Try the beta version Plans and prices

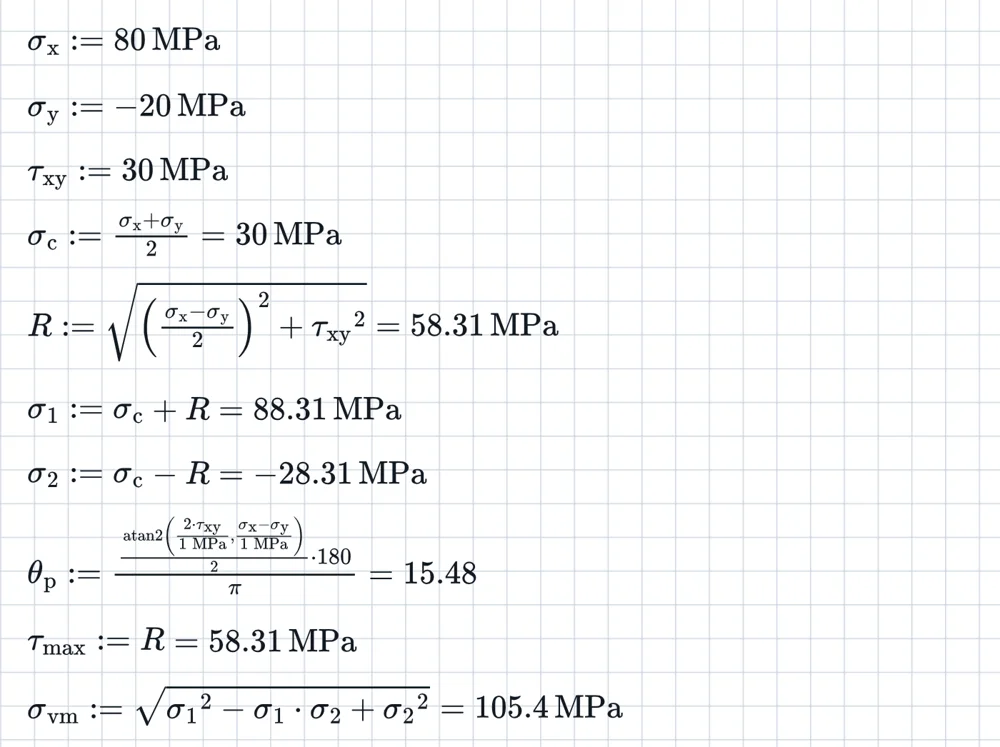

The calculation

sigma_x := 80 MPa
sigma_y := -20 MPa
tau_xy := 30 MPa
sigma_c := (sigma_x + sigma_y)/2 = MPa
R := sqrt(((sigma_x - sigma_y)/2)^2 + tau_xy^2) = MPa
sigma_1 := sigma_c + R = MPa
sigma_2 := sigma_c - R = MPa
theta_p := atan2(2*tau_xy/(1 MPa), (sigma_x - sigma_y)/(1 MPa))/2*180/pi =
tau_max := R = MPa
sigma_vm := sqrt(sigma_1^2 - sigma_1*sigma_2 + sigma_2^2) = MPa

Results for these inputs

• Centre 30 MPa, radius 58.3 MPa.
• Principal stresses 88.3 MPa and −28.3 MPa, on planes at 15.5°.
• Maximum shear stress 58.3 MPa.
• Von Mises stress 105.4 MPa.

How it works

σ_1,2 = (σ_x + σ_y)/2 ± √(((σ_x − σ_y)/2)² + τ_xy²), tan 2θ_p = 2τ_xy/(σ_x − σ_y), and σ_vm = √(σ₁² − σ₁σ₂ + σ₂²). atan2 takes plain numbers, so the stresses are divided by 1 MPa there.

These calculations use classical textbook mechanics, not a design code. For design, use the method, factors and checks that apply to your work and have the result checked by a competent person.

Draw the circle

Plot Mohr’s circle as a parametric graph: plot([sigma_c/(1 MPa) + R/(1 MPa)*cos(t), R/(1 MPa)*sin(t)], t, 0, 2*pi) with the type set to Parametric. See the graph plotter.

Questions

How do I calculate principal stresses?

Take the average normal stress (σx + σy)/2 as the centre of Mohr’s circle and √(((σx − σy)/2)² + τxy²) as its radius; the principal stresses are centre ± radius.

What is the von Mises stress?

An equivalent stress that combines the principal stresses, σvm = √(σ1² − σ1σ2 + σ2²) in plane stress, often compared with the yield strength.
