Section properties of an I-section, from its dimensions

Area, second moment of area about both axes, elastic and plastic section modulus, radius of gyration and shape factor of a doubly symmetric I-section built from flanges and a web. The same lines work for any plate girder or welded section.

Try the beta version Plans and prices

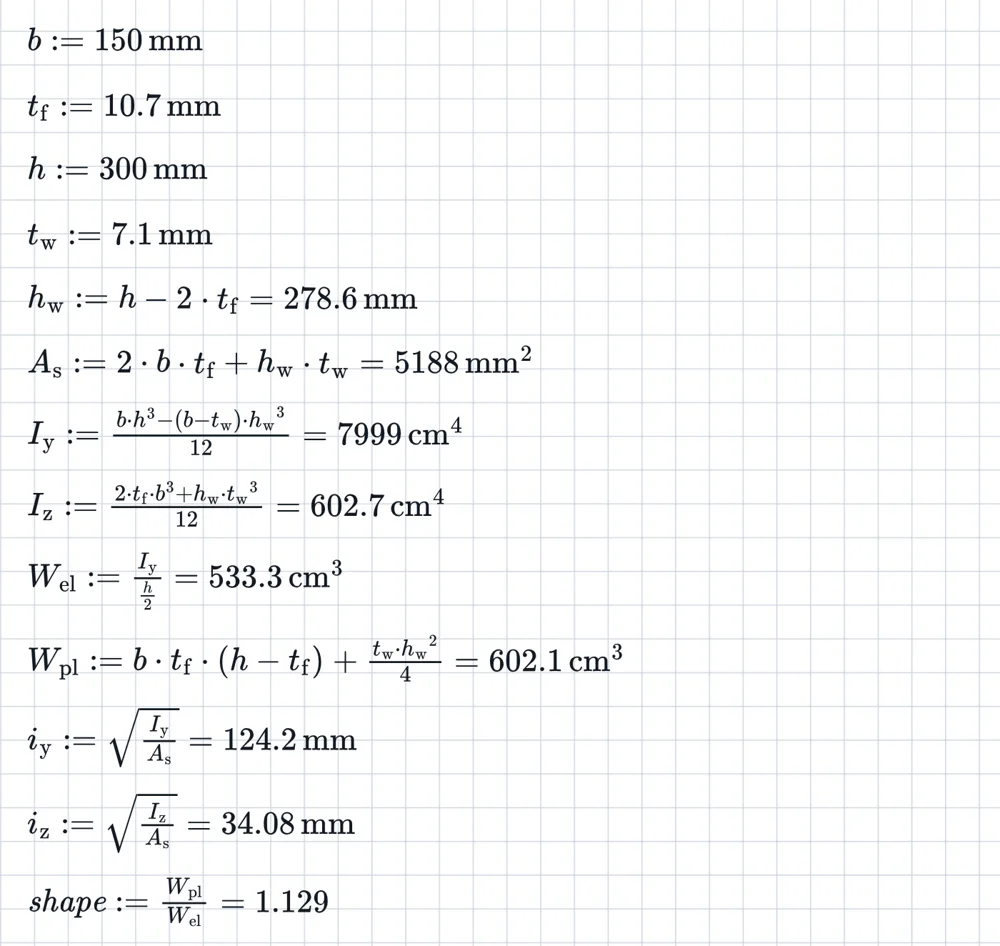

Section properties of an I-section calculated in Equation Pad.

The calculation

b := 150 mm
t_f := 10.7 mm
h := 300 mm
t_w := 7.1 mm
h_w := h - 2*t_f = mm
A_s := 2*b*t_f + h_w*t_w = mm^2
I_y := (b*h^3 - (b - t_w)*h_w^3)/12 = cm^4
I_z := (2*t_f*b^3 + h_w*t_w^3)/12 = cm^4
W_el := I_y/(h/2) = cm^3
W_pl := b*t_f*(h - t_f) + t_w*h_w^2/4 = cm^3
i_y := sqrt(I_y/A_s) = mm
i_z := sqrt(I_z/A_s) = mm
shape := W_pl/W_el =

Results for these inputs

  • Area 5188 mm².
  • Iy = 7999 cm⁴ and Iz = 602.7 cm⁴.
  • Elastic section modulus 533.3 cm³, plastic section modulus 602.1 cm³, shape factor 1.13.
  • Radii of gyration 124.2 mm and 34.1 mm.

How it works

The second moment of area is the outer rectangle minus the two voids beside the web, bh³/12 − (b − tw)hw³/12. The plastic modulus adds the first moments of the flanges and the web about the centre line. Root radii are left out, so values are slightly lower than for a rolled section.

These calculations use classical textbook mechanics, not a design code. For design, use the method, factors and checks that apply to your work and have the result checked by a competent person.

Other shapes

For T-sections, angles and built-up sections, find the centroid with y_c := (A_1*y_1 + A_2*y_2)/(A_1 + A_2) and use the parallel axis rule I := I_1 + A_1*(y_1 - y_c)^2 + …. Keep a table of plates in a spreadsheet and sum it in the maths.

Questions

What is the difference between elastic and plastic section modulus?

The elastic modulus W_el = I/(h/2) gives the moment at first yield; the plastic modulus W_pl is the first moment of area of both halves and gives the fully plastic moment. Their ratio is the shape factor.

Can I calculate the properties of any section?

Yes: write the area and second moment of each part, the centroid, and add them with the parallel axis rule. Units are handled for you.
