Beam deflection calculator: write it once, change any input

Deflection of a simply supported beam under a uniform load and a central point load, its end slope, the deflection of a cantilever, and the maximum bending moment and shear force. Every line is typed exactly as shown, and every result updates when an input changes.

Try the beta version Plans and prices

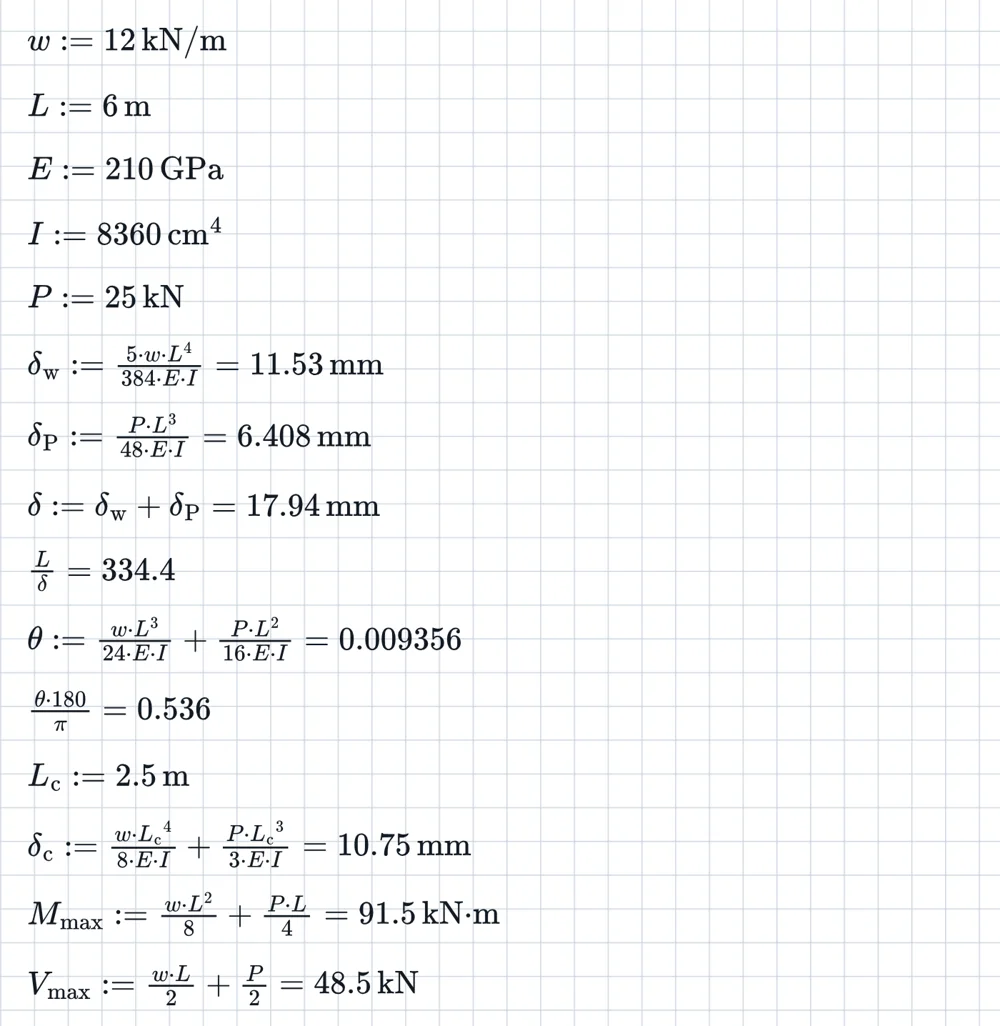

Beam deflection calculation in Equation Pad with typeset equations and results in mm.

The calculation

w := 12 kN/m
L := 6 m
E := 210 GPa
I := 8360 cm^4
P := 25 kN
delta_w := 5*w*L^4/(384*E*I) = mm
delta_P := P*L^3/(48*E*I) = mm
delta := delta_w + delta_P = mm
L/delta =
theta := w*L^3/(24*E*I) + P*L^2/(16*E*I) =
theta*180/pi =
L_c := 2.5 m
delta_c := w*L_c^4/(8*E*I) + P*L_c^3/(3*E*I) = mm
M_max := w*L^2/8 + P*L/4 = kN*m
V_max := w*L/2 + P/2 = kN

Results for these inputs

  • Midspan deflection: 11.53 mm from the uniform load plus 6.41 mm from the point load, 17.94 mm in total, which is span / 334.
  • End slope 0.0094 rad (0.54°).
  • A 2.5 m cantilever with the same loads deflects 10.75 mm at its tip.
  • Maximum bending moment 91.5 kN·m and shear force 48.5 kN.

How it works

The classical elastic formulas: 5wL⁴/384EI for a uniform load and PL³/48EI for a central point load on a simply supported beam, wL⁴/8EI and PL³/3EI for a cantilever. Superposition adds the cases. Units are checked: kN, m, GPa and cm⁴ combine to give millimetres without any conversion factor.

These calculations use classical textbook mechanics, not a design code. For design, use the method, factors and checks that apply to your work and have the result checked by a competent person.

Try other cases

Change w, P, L or I and every line follows. Plot the deflected shape with plot(y(x), x, 0 m, L), or compare sections in a spreadsheet with units.

Questions

How do I calculate the deflection of a simply supported beam?

For a uniform load w on a span L: delta = 5wL⁴/(384EI). For a central point load P: delta = PL³/(48EI). Equation Pad evaluates both with units and adds them.

Can I use cm⁴ and GPa directly?

Yes. Write I := 8360 cm^4 and E := 210 GPa; the result is converted to the unit you ask for, for example = mm.
