Bolted joint: shear and bearing
Design strength of M20 property class 4.6 bolts in single shear and in bearing, and the number of bolts needed. Reference: IS 800:2007 Cl. 10.3.3, 10.3.4.
Open this sheet in Equation Pad Browse the Library
Example only. This sheet shows one way to set out the check. It is not endorsed by the bodies that publish the design codes and does not reproduce them. Check every clause, value and assumption against your own copy of the current edition of IS 800 before you use it, and have the result checked by a competent person. See the disclaimer.

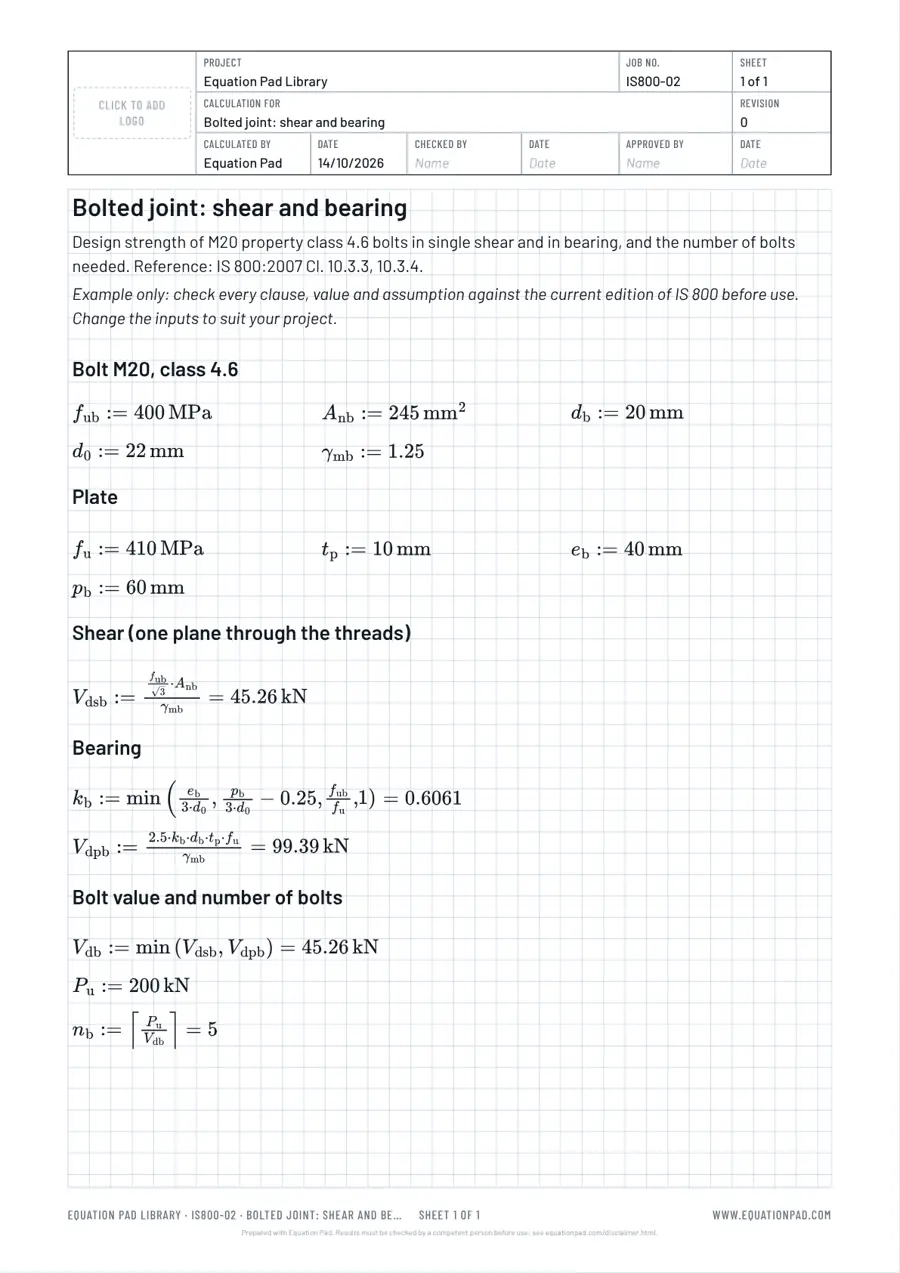

The calculation, line by line
Every line below is typed into Equation Pad exactly as shown; the app typesets it, works out the value with its units and shows checks as TRUE or FALSE. Change any input and everything below it updates.
# Bolt M20, class 4.6
f_ub := 400 MPa
A_nb := 245 mm^2
d_b := 20 mm
d_0 := 22 mm
gamma_mb := 1.25
# Plate
f_u := 410 MPa
t_p := 10 mm
e_b := 40 mm
p_b := 60 mm
# Shear (one plane through the threads)
V_dsb := f_ub/sqrt(3)*A_nb/gamma_mb = kN
# Bearing
k_b := min(e_b/(3*d_0), p_b/(3*d_0) - 0.25, f_ub/f_u, 1) =
V_dpb := 2.5*k_b*d_b*t_p*f_u/gamma_mb = kN
# Bolt value and number of bolts
V_db := min(V_dsb, V_dpb) =
P_u := 200 kN
n_b := ceil(P_u/V_db) =How to use this example
- Click Open this sheet in Equation Pad. It opens as a new worksheet in your browser; nothing is installed.
- Change the inputs at the top to those of your project.
- Check the clauses and coefficients against the code, add your own checks, and save the sheet or export a PDF with your title block.
