Bolts in shear and bearing
Shear resistance of M20 class 8.8 bolts and bearing resistance of the connected plate for a four-bolt lap joint. Reference: EN 1993-1-8 3.6.1, Table 3.4.
Open this sheet in Equation Pad Browse the Library
Example only. This sheet shows one way to set out the check. It is not endorsed by the bodies that publish the design codes and does not reproduce them. Check every clause, value and assumption against your own copy of the current edition of Eurocode 3 and its national annex before you use it, and have the result checked by a competent person. See the disclaimer.
The calculation, line by line

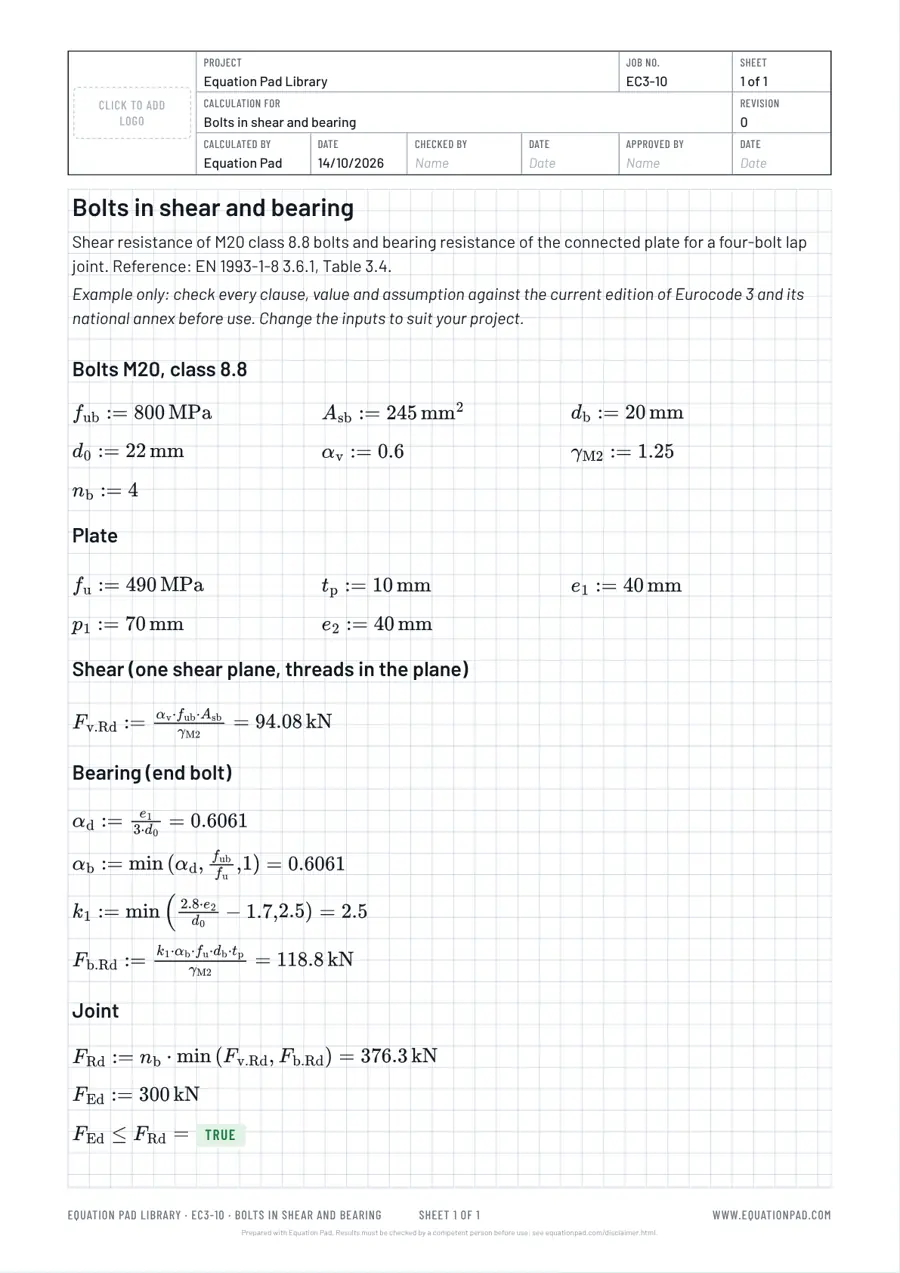

Every line below is typed into Equation Pad exactly as shown; the app typesets it, works out the value with its units and shows checks as TRUE or FALSE. Change any input and everything below it updates.
# Bolts M20, class 8.8
f_ub := 800 MPa
A_sb := 245 mm^2
d_b := 20 mm
d_0 := 22 mm
alpha_v := 0.6
gamma_M2 := 1.25
n_b := 4
# Plate
f_u := 490 MPa
t_p := 10 mm
e_1 := 40 mm
p_1 := 70 mm
e_2 := 40 mm
# Shear (one shear plane, threads in the plane)
F_v.Rd := alpha_v*f_ub*A_sb/gamma_M2 = kN
# Bearing (end bolt)
alpha_d := e_1/(3*d_0) =
alpha_b := min(alpha_d, f_ub/f_u, 1) =
k_1 := min(2.8*e_2/d_0 - 1.7, 2.5) =
F_b.Rd := k_1*alpha_b*f_u*d_b*t_p/gamma_M2 = kN
# Joint
F_Rd := n_b*min(F_v.Rd, F_b.Rd) = kN
F_Ed := 300 kN
F_Ed <= F_Rd =How to use this example
- Click Open this sheet in Equation Pad. It opens as a new worksheet in your browser; nothing is installed.
- Change the inputs at the top to those of your project.
- Check the clauses and coefficients against the code, add your own checks, and save the sheet or export a PDF with your title block.
