Limiting moment of resistance of a singly reinforced beam

Depth of the neutral axis at the balanced point, limiting moment and limiting steel of a rectangular beam to IS 456. Reference: IS 456:2000 Cl. 38.1 and Annex G.

Open this sheet in Equation Pad Browse the Library

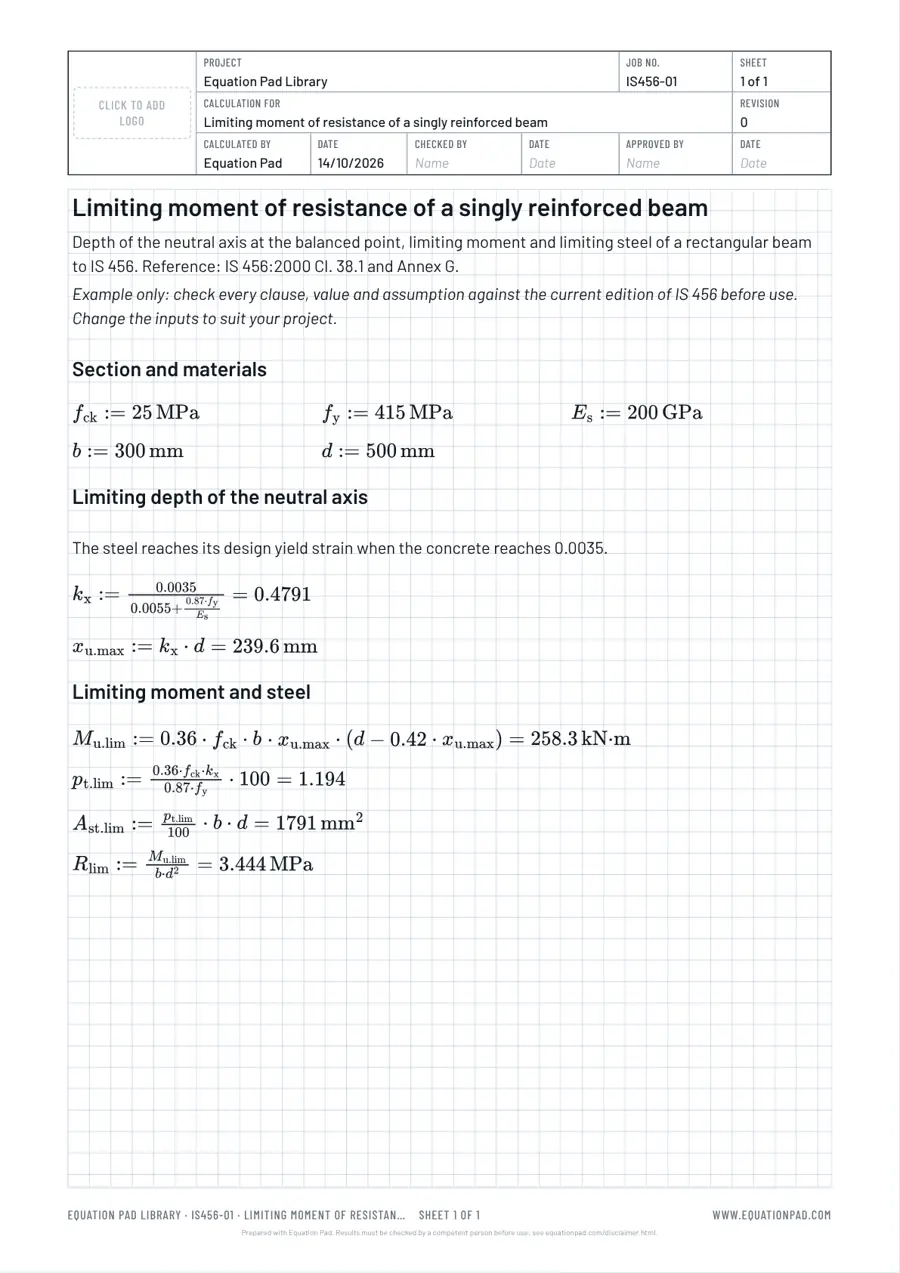

Limiting moment of resistance of a singly reinforced beam: worked example sheet in Equation Pad with typeset equations and results.

Example only. This sheet shows one way to set out the check. It is not endorsed by the bodies that publish the design codes and does not reproduce them. Check every clause, value and assumption against your own copy of the current edition of IS 456 before you use it, and have the result checked by a competent person. See the disclaimer.

The calculation, line by line

Every line below is typed into Equation Pad exactly as shown; the app typesets it, works out the value with its units and shows checks as TRUE or FALSE. Change any input and everything below it updates.

# Section and materials
f_ck := 25 MPa
f_y := 415 MPa
E_s := 200 GPa
b := 300 mm
d := 500 mm

# Limiting depth of the neutral axis
# The steel reaches its design yield strain when the concrete reaches 0.0035.
k_x := 0.0035/(0.0055 + 0.87*f_y/E_s) =
x_u.max := k_x*d =

# Limiting moment and steel
M_u.lim := 0.36*f_ck*b*x_u.max*(d - 0.42*x_u.max) = kN*m
p_t.lim := 0.36*f_ck*k_x/(0.87*f_y)*100 =
A_st.lim := p_t.lim/100*b*d = mm^2
R_lim := M_u.lim/(b*d^2) = MPa

How to use this example

  1. Click Open this sheet in Equation Pad. It opens as a new worksheet in your browser; nothing is installed.
  2. Change the inputs at the top to those of your project.
  3. Check the clauses and coefficients against the code, add your own checks, and save the sheet or export a PDF with your title block.
