Tension member with bolt holes

Plastic resistance of the gross section and ultimate resistance of the net section of a flat in tension. Reference: EN 1993-1-1 6.2.3.

Open this sheet in Equation Pad Browse the Library

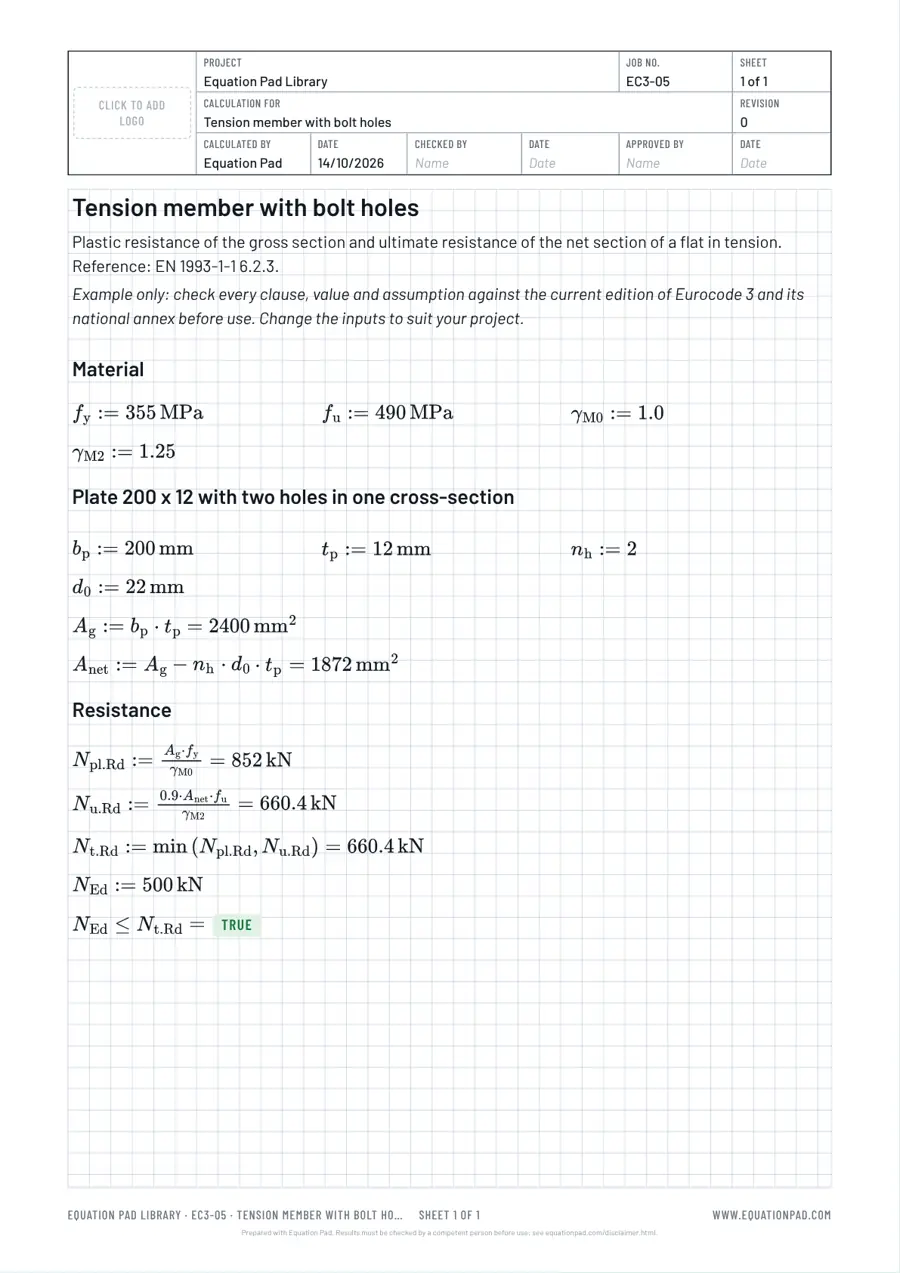

Tension member with bolt holes: worked example sheet in Equation Pad with typeset equations and results.

Example only. This sheet shows one way to set out the check. It is not endorsed by the bodies that publish the design codes and does not reproduce them. Check every clause, value and assumption against your own copy of the current edition of Eurocode 3 and its national annex before you use it, and have the result checked by a competent person. See the disclaimer.

The calculation, line by line

Every line below is typed into Equation Pad exactly as shown; the app typesets it, works out the value with its units and shows checks as TRUE or FALSE. Change any input and everything below it updates.

# Material
f_y := 355 MPa
f_u := 490 MPa
gamma_M0 := 1.0
gamma_M2 := 1.25

# Plate 200 x 12 with two holes in one cross-section
b_p := 200 mm
t_p := 12 mm
n_h := 2
d_0 := 22 mm
A_g := b_p*t_p = mm^2
A_net := A_g - n_h*d_0*t_p = mm^2

# Resistance
N_pl.Rd := A_g*f_y/gamma_M0 = kN
N_u.Rd := 0.9*A_net*f_u/gamma_M2 = kN
N_t.Rd := min(N_pl.Rd, N_u.Rd) =
N_Ed := 500 kN
N_Ed <= N_t.Rd =

How to use this example

  1. Click Open this sheet in Equation Pad. It opens as a new worksheet in your browser; nothing is installed.
  2. Change the inputs at the top to those of your project.
  3. Check the clauses and coefficients against the code, add your own checks, and save the sheet or export a PDF with your title block.
