Flexural buckling of a column

Buckling resistance of a pinned HE 200 B column about its weak axis with buckling curve c. Reference: EN 1993-1-1 6.3.1, Table 6.1, Table 6.2.

Open this sheet in Equation Pad Browse the Library

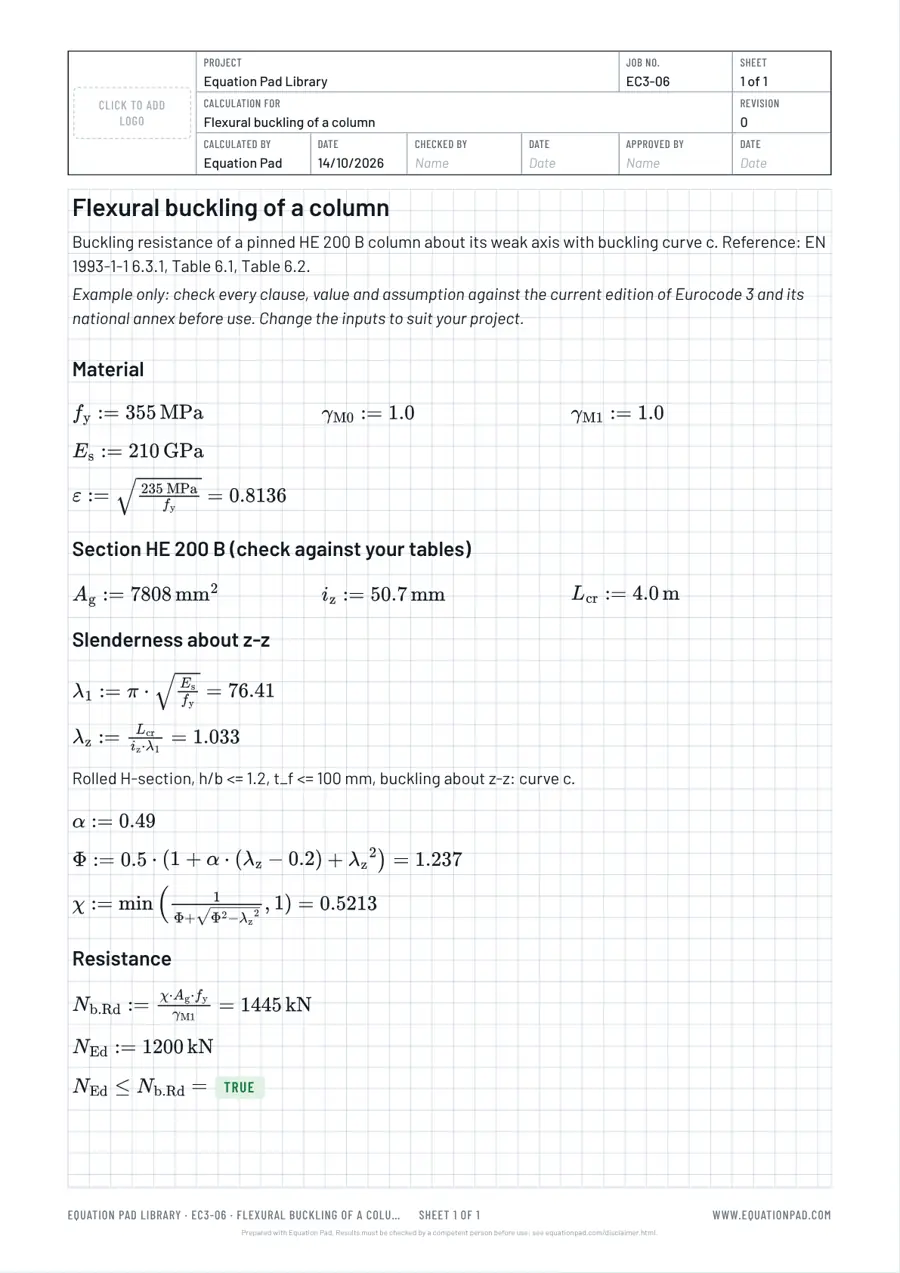

Flexural buckling of a column: worked example sheet in Equation Pad with typeset equations and results.

Example only. This sheet shows one way to set out the check. It is not endorsed by the bodies that publish the design codes and does not reproduce them. Check every clause, value and assumption against your own copy of the current edition of Eurocode 3 and its national annex before you use it, and have the result checked by a competent person. See the disclaimer.

The calculation, line by line

Every line below is typed into Equation Pad exactly as shown; the app typesets it, works out the value with its units and shows checks as TRUE or FALSE. Change any input and everything below it updates.

# Material
f_y := 355 MPa
gamma_M0 := 1.0
gamma_M1 := 1.0
E_s := 210 GPa
epsilon := sqrt(235 MPa/f_y) =

# Section HE 200 B (check against your tables)
A_g := 7808 mm^2
i_z := 50.7 mm
L_cr := 4.0 m

# Slenderness about z-z
lambda_1 := pi*sqrt(E_s/f_y) =
lambda_z := L_cr/(i_z*lambda_1) =
# Rolled H-section, h/b <= 1.2, t_f <= 100 mm, buckling about z-z: curve c.
alpha := 0.49
Phi := 0.5*(1 + alpha*(lambda_z - 0.2) + lambda_z^2) =
chi := min(1/(Phi + sqrt(Phi^2 - lambda_z^2)), 1) =

# Resistance
N_b.Rd := chi*A_g*f_y/gamma_M1 = kN
N_Ed := 1200 kN
N_Ed <= N_b.Rd =

How to use this example

  1. Click Open this sheet in Equation Pad. It opens as a new worksheet in your browser; nothing is installed.
  2. Change the inputs at the top to those of your project.
  3. Check the clauses and coefficients against the code, add your own checks, and save the sheet or export a PDF with your title block.
