Deflection by interpolation between uncracked and cracked states
Long-term deflection of a simply supported beam by the distribution coefficient zeta. Reference: EN 1992-1-1 7.4.3.
Open this sheet in Equation Pad Browse the Library
Example only. This sheet shows one way to set out the check. It is not endorsed by the bodies that publish the design codes and does not reproduce them. Check every clause, value and assumption against your own copy of the current edition of Eurocode 2 and its national annex before you use it, and have the result checked by a competent person. See the disclaimer.
The calculation, line by line

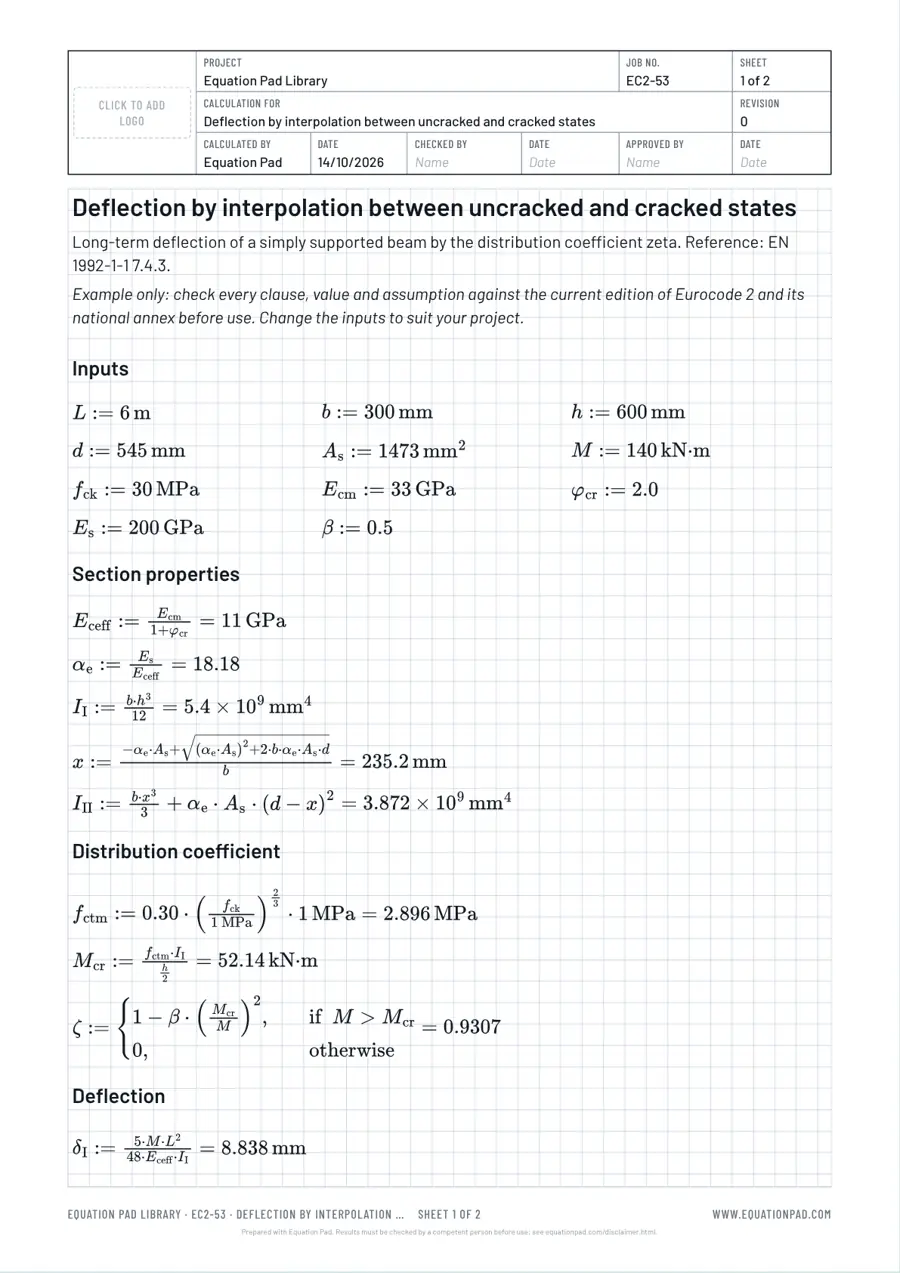

Every line below is typed into Equation Pad exactly as shown; the app typesets it, works out the value with its units and shows checks as TRUE or FALSE. Change any input and everything below it updates.
# Inputs
L := 6 m
b := 300 mm
h := 600 mm
d := 545 mm
A_s := 1473 mm^2
M := 140 kN*m
f_ck := 30 MPa
E_cm := 33 GPa
phi_cr := 2.0
E_s := 200 GPa
beta := 0.5
# Section properties
E_ceff := E_cm/(1 + phi_cr) = GPa
alpha_e := E_s/E_ceff =
I_I := b*h^3/12 = mm^4
x := (-alpha_e*A_s + sqrt((alpha_e*A_s)^2 + 2*b*alpha_e*A_s*d))/b = mm
I_II := b*x^3/3 + alpha_e*A_s*(d - x)^2 = mm^4
# Distribution coefficient
f_ctm := 0.30*(f_ck/(1 MPa))^(2/3)*1 MPa =
M_cr := f_ctm*I_I/(h/2) = kN*m
zeta := M > M_cr ? 1 - beta*(M_cr/M)^2 : 0 =
# Deflection
delta_I := 5*M*L^2/(48*E_ceff*I_I) = mm
delta_II := 5*M*L^2/(48*E_ceff*I_II) = mm
delta := zeta*delta_II + (1 - zeta)*delta_I = mm
delta <= L/250 =How to use this example
