Crack width of a beam (Annex F)
Elastic cracked section, steel stress, average strain with tension stiffening and the design crack width. Reference: IS 456:2000 Cl. 35.3.2 and Annex F.
Open this sheet in Equation Pad Browse the Library
Example only. This sheet shows one way to set out the check. It is not endorsed by the bodies that publish the design codes and does not reproduce them. Check every clause, value and assumption against your own copy of the current edition of IS 456 before you use it, and have the result checked by a competent person. See the disclaimer.
The calculation, line by line

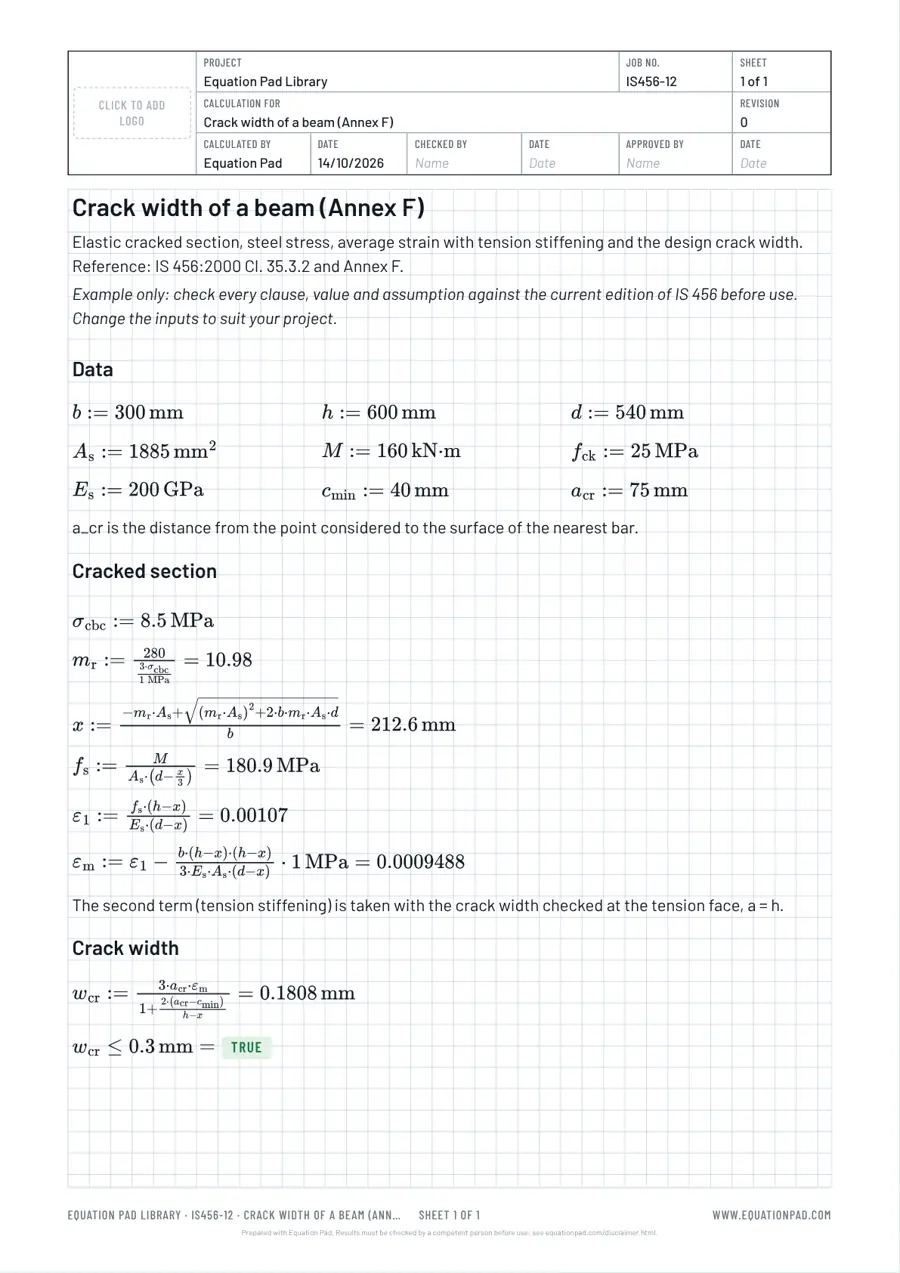

Every line below is typed into Equation Pad exactly as shown; the app typesets it, works out the value with its units and shows checks as TRUE or FALSE. Change any input and everything below it updates.
# Data
b := 300 mm
h := 600 mm
d := 540 mm
A_s := 1885 mm^2
M := 160 kN*m
f_ck := 25 MPa
E_s := 200 GPa
c_min := 40 mm
a_cr := 75 mm
# a_cr is the distance from the point considered to the surface of the nearest bar.
# Cracked section
sigma_cbc := 8.5 MPa
m_r := 280/(3*sigma_cbc/(1 MPa)) =
x := (-m_r*A_s + sqrt((m_r*A_s)^2 + 2*b*m_r*A_s*d))/b = mm
f_s := M/(A_s*(d - x/3)) = MPa
epsilon_1 := f_s*(h - x)/(E_s*(d - x)) =
epsilon_m := epsilon_1 - b*(h - x)*(h - x)/(3*E_s*A_s*(d - x))*1 MPa =
# The second term (tension stiffening) is taken with the crack width checked at the tension face, a = h.
# Crack width
w_cr := 3*a_cr*epsilon_m/(1 + 2*(a_cr - c_min)/(h - x)) = mm
w_cr <= 0.3 mm =How to use this example
- Click Open this sheet in Equation Pad. It opens as a new worksheet in your browser; nothing is installed.
- Change the inputs at the top to those of your project.
- Check the clauses and coefficients against the code, add your own checks, and save the sheet or export a PDF with your title block.
