Effective depth from cover and bar sizes

Effective depth of a beam with one or two layers of bars from the nominal cover and bar diameters. Reference: IS 456:2000 Cl. 26.4, Table 16.

Open this sheet in Equation Pad Browse the Library

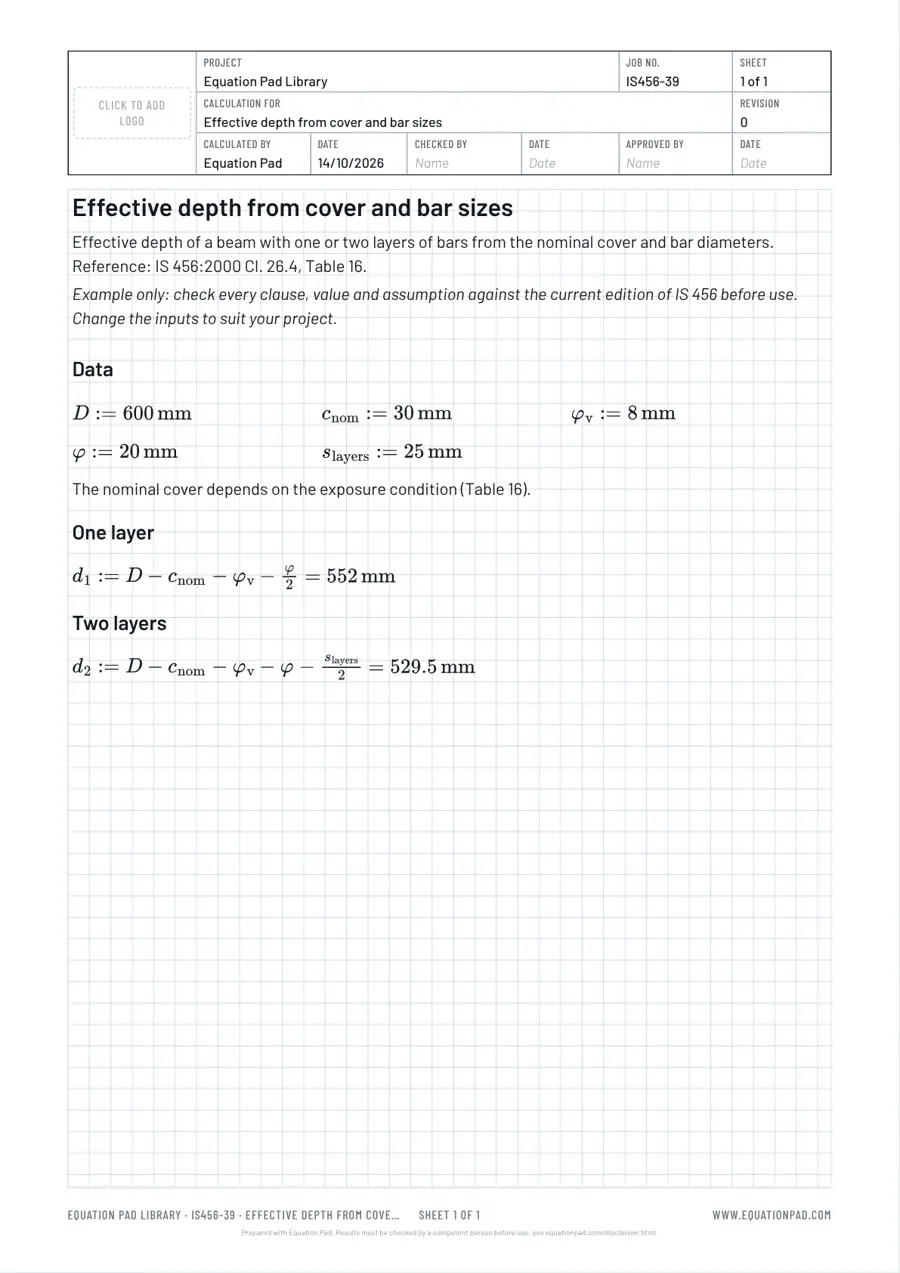

Effective depth from cover and bar sizes: worked example sheet in Equation Pad with typeset equations and results.

Example only. This sheet shows one way to set out the check. It is not endorsed by the bodies that publish the design codes and does not reproduce them. Check every clause, value and assumption against your own copy of the current edition of IS 456 before you use it, and have the result checked by a competent person. See the disclaimer.

The calculation, line by line

Every line below is typed into Equation Pad exactly as shown; the app typesets it, works out the value with its units and shows checks as TRUE or FALSE. Change any input and everything below it updates.

# Data
D := 600 mm
c_nom := 30 mm
phi_v := 8 mm
phi := 20 mm
s_layers := 25 mm
# The nominal cover depends on the exposure condition (Table 16).

# One layer
d_1 := D - c_nom - phi_v - phi/2 =

# Two layers
d_2 := D - c_nom - phi_v - phi - s_layers/2 =

How to use this example

  1. Click Open this sheet in Equation Pad. It opens as a new worksheet in your browser; nothing is installed.
  2. Change the inputs at the top to those of your project.
  3. Check the clauses and coefficients against the code, add your own checks, and save the sheet or export a PDF with your title block.
