Shear design of a beam with vertical stirrups
Nominal shear stress, design shear strength of concrete, maximum shear stress and stirrup spacing to IS 456. Reference: IS 456:2000 Cl. 40.1-40.4, Tables 19 and 20.
Open this sheet in Equation Pad Browse the Library
Example only. This sheet shows one way to set out the check. It is not endorsed by the bodies that publish the design codes and does not reproduce them. Check every clause, value and assumption against your own copy of the current edition of IS 456 before you use it, and have the result checked by a competent person. See the disclaimer.
The calculation, line by line

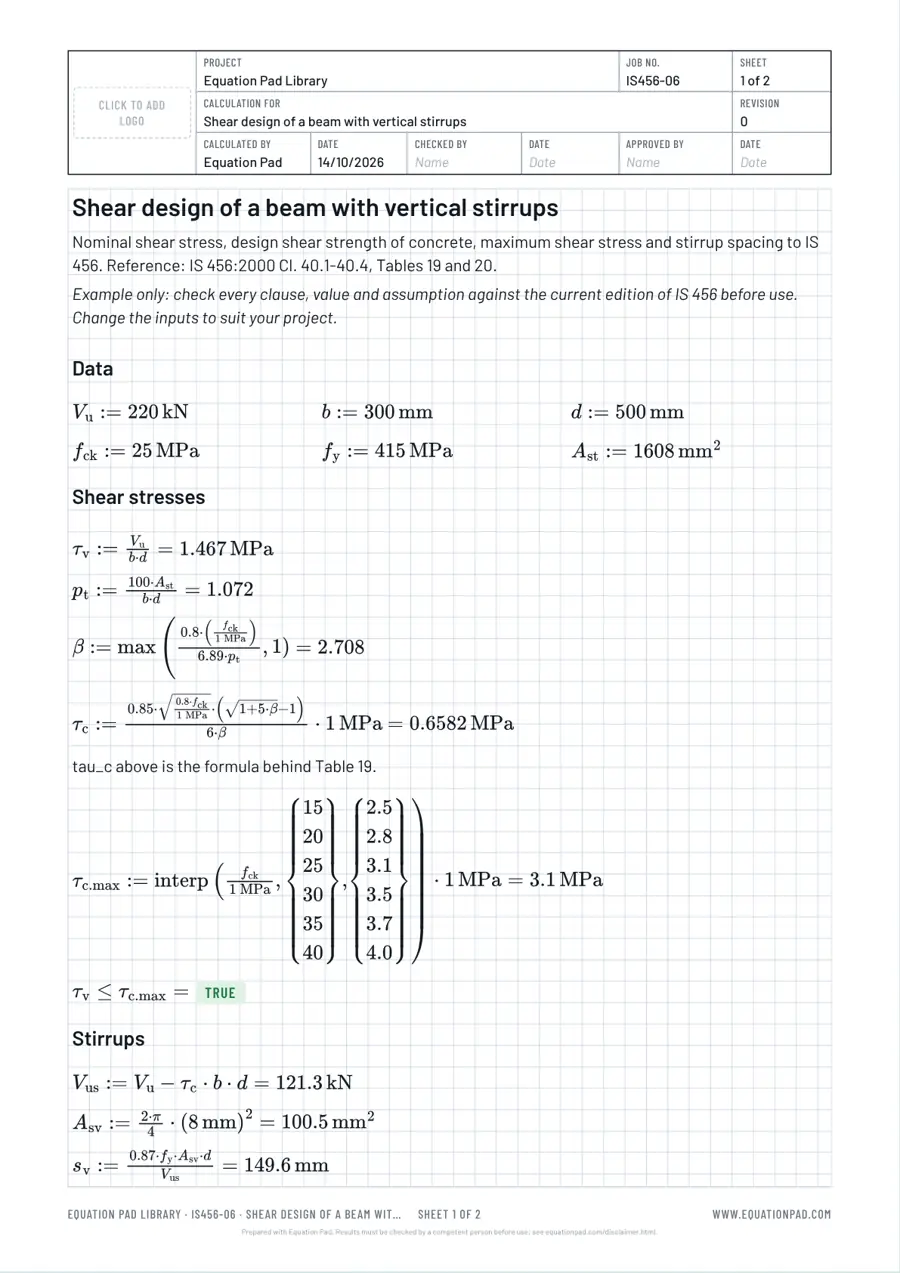

Every line below is typed into Equation Pad exactly as shown; the app typesets it, works out the value with its units and shows checks as TRUE or FALSE. Change any input and everything below it updates.
# Data
V_u := 220 kN
b := 300 mm
d := 500 mm
f_ck := 25 MPa
f_y := 415 MPa
A_st := 1608 mm^2
# Shear stresses
tau_v := V_u/(b*d) = MPa
p_t := 100*A_st/(b*d) =
beta := max(0.8*(f_ck/(1 MPa))/(6.89*p_t), 1) =
tau_c := 0.85*sqrt(0.8*f_ck/(1 MPa))*(sqrt(1 + 5*beta) - 1)/(6*beta)*1 MPa =
# tau_c above is the formula behind Table 19.
tau_c.max := interp(f_ck/(1 MPa), [15, 20, 25, 30, 35, 40], [2.5, 2.8, 3.1, 3.5, 3.7, 4.0])*1 MPa =
tau_v <= tau_c.max =
# Stirrups
V_us := V_u - tau_c*b*d = kN
A_sv := 2*pi/4*(8 mm)^2 = mm^2
s_v := 0.87*f_y*A_sv*d/V_us = mm
s_v.max := min(0.75*d, 300 mm, 0.87*f_y*A_sv/(0.4 MPa*b)) = mm
s := min(s_v, s_v.max) = mmHow to use this example
