Passive earth resistance (Rankine)
Rankine passive coefficient and the passive resistance in front of a wall or footing. Reference: Rankine theory; EN 1997-1 Annex C.
Open this sheet in Equation Pad Browse the Library
Example only. This sheet shows one way to set out the check. It is not endorsed by the bodies that publish the design codes and does not reproduce them. Check every clause, value and assumption against your own copy of the current edition of your references and the codes that apply before you use it, and have the result checked by a competent person. See the disclaimer.
The calculation, line by line
Every line below is typed into Equation Pad exactly as shown; the app typesets it, works out the value with its units and shows checks as TRUE or FALSE. Change any input and everything below it updates.

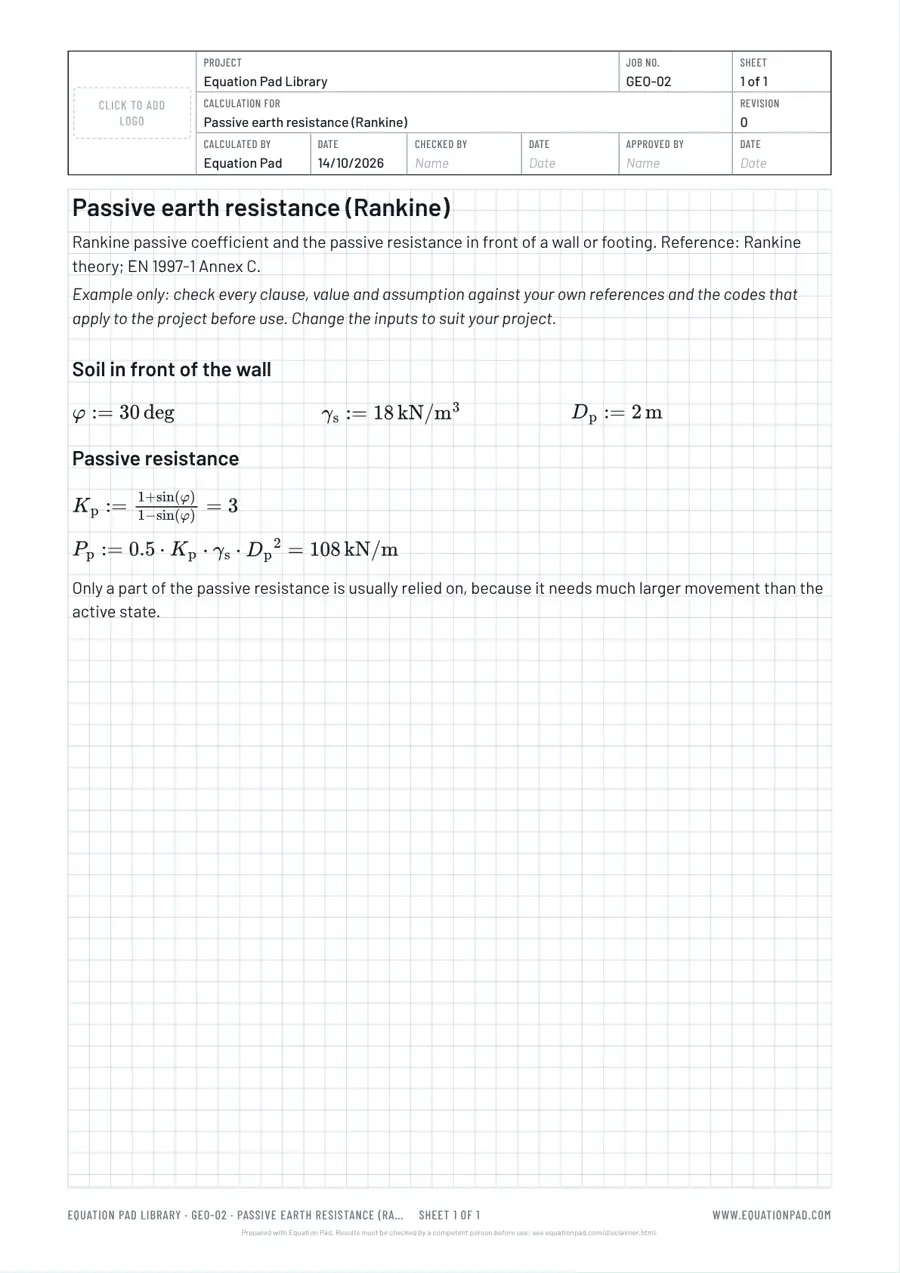

# Soil in front of the wall
phi := 30 deg
gamma_s := 18 kN/m^3
D_p := 2 m
# Passive resistance
K_p := (1 + sin(phi))/(1 - sin(phi)) =
P_p := 0.5*K_p*gamma_s*D_p^2 = kN/m
# Only a part of the passive resistance is usually relied on, because it needs much larger movement than the active state.How to use this example
- Click Open this sheet in Equation Pad. It opens as a new worksheet in your browser; nothing is installed.
- Change the inputs at the top to those of your project.
- Check the clauses and coefficients against the code, add your own checks, and save the sheet or export a PDF with your title block.
