Immediate (elastic) settlement of a footing
Settlement of a rigid square footing on an elastic soil from the bearing pressure, Young modulus and Poisson ratio. Reference: Elastic theory (influence factor for a rigid square footing).
Open this sheet in Equation Pad Browse the Library
Example only. This sheet shows one way to set out the check. It is not endorsed by the bodies that publish the design codes and does not reproduce them. Check every clause, value and assumption against your own copy of the current edition of your references and the codes that apply before you use it, and have the result checked by a competent person. See the disclaimer.
The calculation, line by line

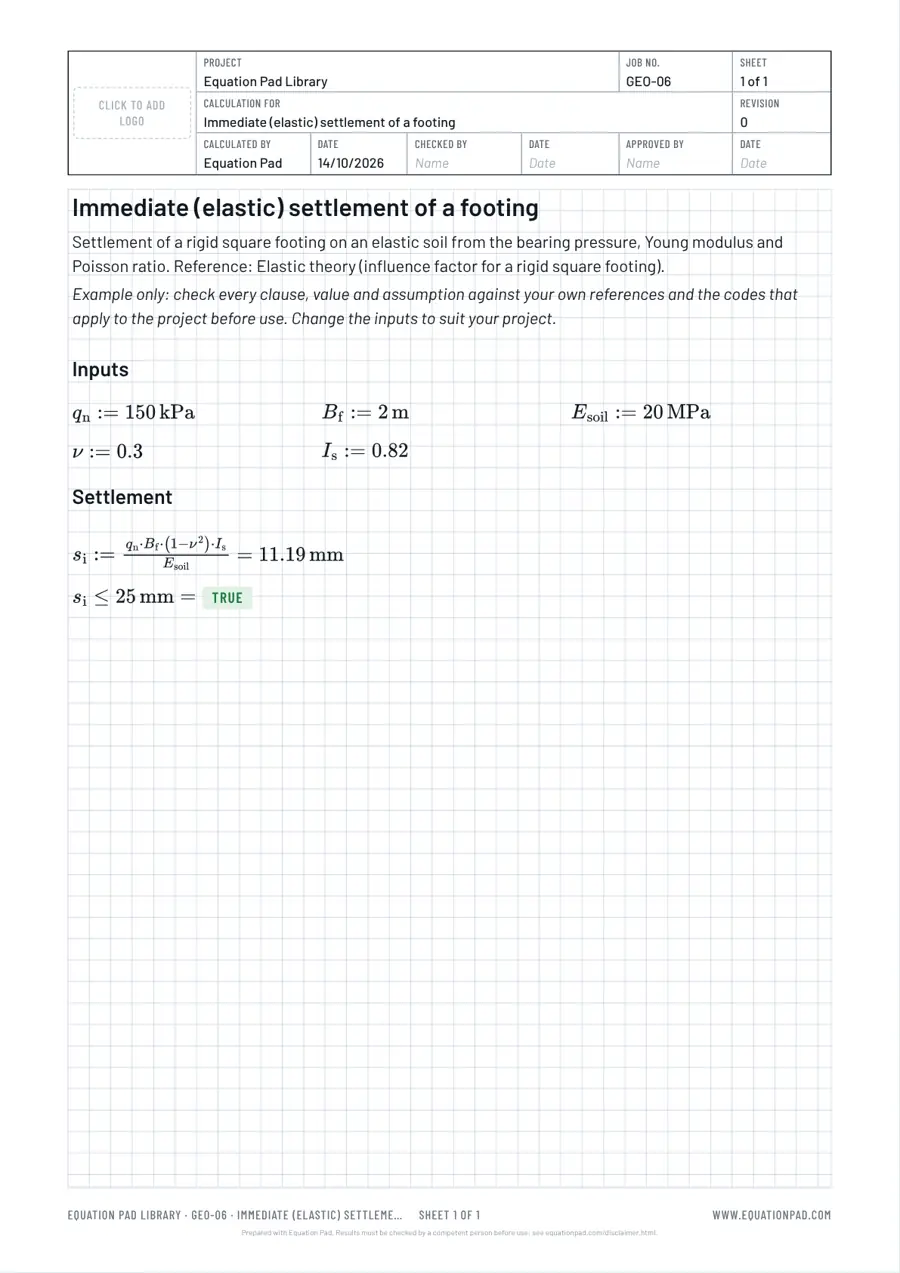

Every line below is typed into Equation Pad exactly as shown; the app typesets it, works out the value with its units and shows checks as TRUE or FALSE. Change any input and everything below it updates.
# Inputs
q_n := 150 kPa
B_f := 2 m
E_soil := 20 MPa
nu := 0.3
I_s := 0.82
# Settlement
s_i := q_n*B_f*(1 - nu^2)*I_s/E_soil = mm
s_i <= 25 mm =How to use this example
- Click Open this sheet in Equation Pad. It opens as a new worksheet in your browser; nothing is installed.
- Change the inputs at the top to those of your project.
- Check the clauses and coefficients against the code, add your own checks, and save the sheet or export a PDF with your title block.
