Structural steel design properties

Yield and ultimate strengths by thickness, the factor epsilon and the slenderness lambda_1 used in buckling checks. Reference: EN 1993-1-1 3.2.1, 3.2.6, Table 3.1, 6.3.1.3.

Open this sheet in Equation Pad Browse the Library

Example only. This sheet shows one way to set out the check. It is not endorsed by the bodies that publish the design codes and does not reproduce them. Check every clause, value and assumption against your own copy of the current edition of Eurocode 3 and its national annex before you use it, and have the result checked by a competent person. See the disclaimer.

The calculation, line by line

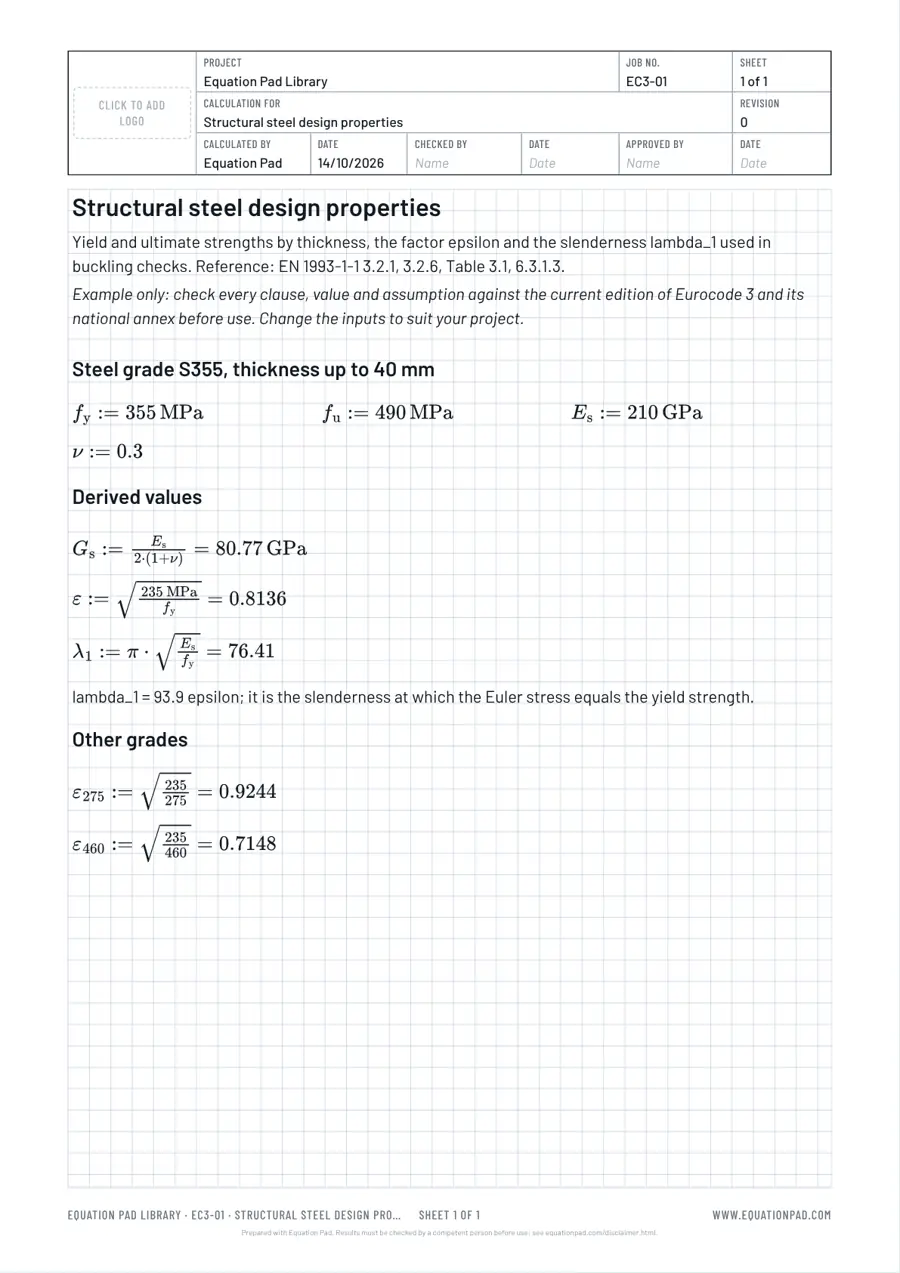

Every line below is typed into Equation Pad exactly as shown; the app typesets it, works out the value with its units and shows checks as TRUE or FALSE. Change any input and everything below it updates.

# Steel grade S355, thickness up to 40 mm
f_y := 355 MPa
f_u := 490 MPa
E_s := 210 GPa
nu := 0.3

# Derived values
G_s := E_s/(2*(1 + nu)) = GPa
epsilon := sqrt(235 MPa/f_y) =
lambda_1 := pi*sqrt(E_s/f_y) =
# lambda_1 = 93.9 epsilon; it is the slenderness at which the Euler stress equals the yield strength.

# Other grades
epsilon_275 := sqrt(235/275) =
epsilon_460 := sqrt(235/460) =

How to use this example

1. Click Open this sheet in Equation Pad. It opens as a new worksheet in your browser; nothing is installed.
2. Change the inputs at the top to those of your project.
3. Check the clauses and coefficients against the code, add your own checks, and save the sheet or export a PDF with your title block.
