Ultimate load combinations (EN 1990)

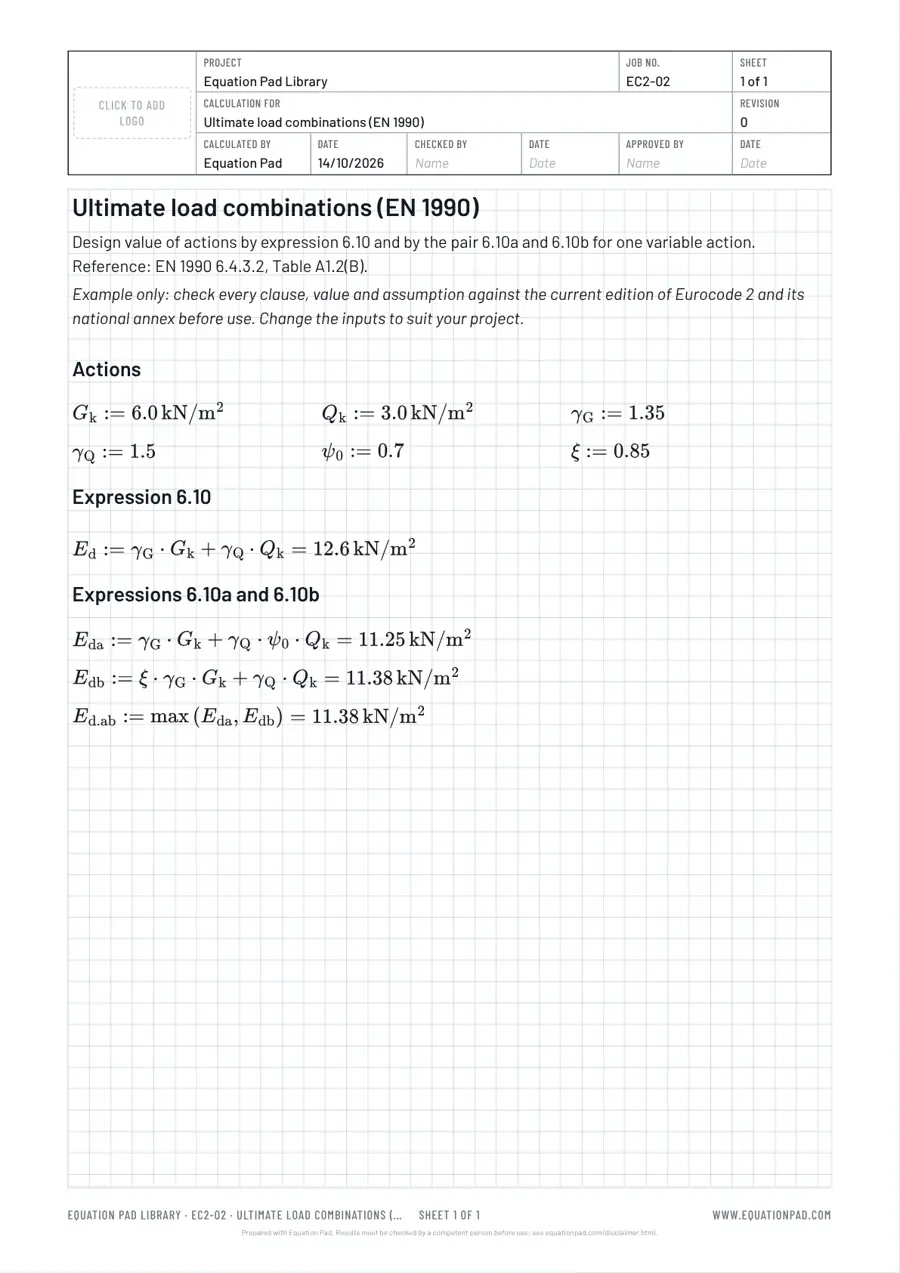

Design value of actions by expression 6.10 and by the pair 6.10a and 6.10b for one variable action. Reference: EN 1990 6.4.3.2, Table A1.2(B).
Open this sheet in Equation Pad Browse the Library
Example only. This sheet shows one way to set out the check. It is not endorsed by the bodies that publish the design codes and does not reproduce them. Check every clause, value and assumption against your own copy of the current edition of Eurocode 2 and its national annex before you use it, and have the result checked by a competent person. See the disclaimer.
The calculation, line by line
Every line below is typed into Equation Pad exactly as shown; the app typesets it, works out the value with its units and shows checks as TRUE or FALSE. Change any input and everything below it updates.
# Actions
G_k := 6.0 kN/m^2
Q_k := 3.0 kN/m^2
gamma_G := 1.35
gamma_Q := 1.5
psi_0 := 0.7
xi := 0.85
# Expression 6.10
E_d := gamma_G*G_k + gamma_Q*Q_k =
# Expressions 6.10a and 6.10b
E_da := gamma_G*G_k + gamma_Q*psi_0*Q_k =
E_db := xi*gamma_G*G_k + gamma_Q*Q_k =
E_d.ab := max(E_da, E_db) =How to use this example
