Pad footing: punching shear at 2d
Punching shear of a pad footing at the control perimeter 2d from the column, with the soil pressure inside it deducted. Reference: EN 1992-1-1 6.4.4(2).
Open this sheet in Equation Pad Browse the Library
Example only. This sheet shows one way to set out the check. It is not endorsed by the bodies that publish the design codes and does not reproduce them. Check every clause, value and assumption against your own copy of the current edition of Eurocode 2 and its national annex before you use it, and have the result checked by a competent person. See the disclaimer.

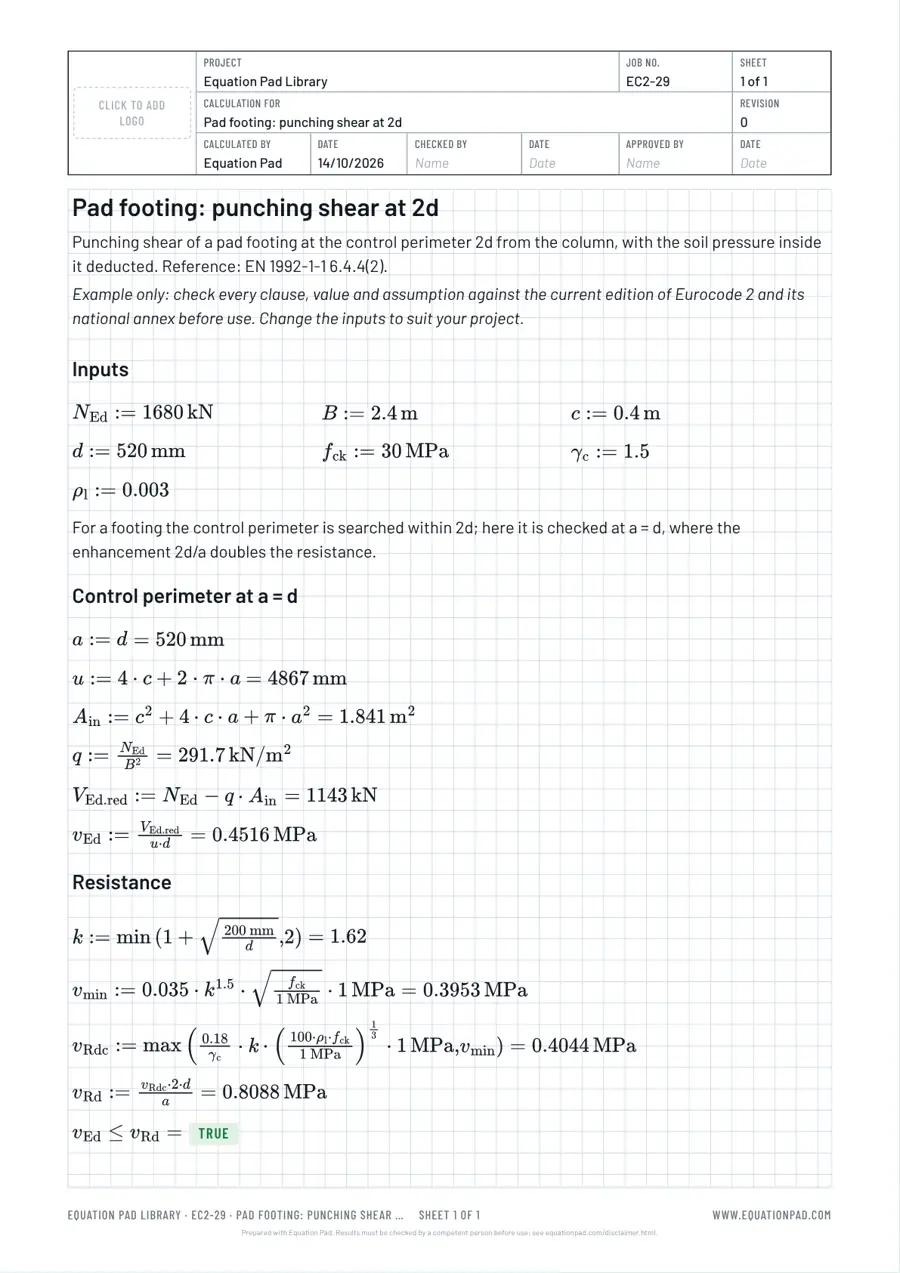

The calculation, line by line
Every line below is typed into Equation Pad exactly as shown; the app typesets it, works out the value with its units and shows checks as TRUE or FALSE. Change any input and everything below it updates.
# Inputs
N_Ed := 1680 kN
B := 2.4 m
c := 0.4 m
d := 520 mm
f_ck := 30 MPa
gamma_c := 1.5
rho_l := 0.003
# For a footing the control perimeter is searched within 2d; here it is checked at a = d, where the enhancement 2d/a doubles the resistance.
# Control perimeter at a = d
a := d =
u := 4*c + 2*pi*a = mm
A_in := c^2 + 4*c*a + pi*a^2 = m^2
q := N_Ed/B^2 = kN/m^2
V_Ed.red := N_Ed - q*A_in = kN
v_Ed := V_Ed.red/(u*d) = MPa
# Resistance
k := min(1 + sqrt(200 mm/d), 2) =
v_min := 0.035*k^1.5*sqrt(f_ck/(1 MPa))*1 MPa =
v_Rdc := max(0.18/gamma_c*k*(100*rho_l*f_ck/(1 MPa))^(1/3)*1 MPa, v_min) =
v_Rd := v_Rdc*2*d/a =
v_Ed <= v_Rd =How to use this example
- Click Open this sheet in Equation Pad. It opens as a new worksheet in your browser; nothing is installed.
- Change the inputs at the top to those of your project.
- Check the clauses and coefficients against the code, add your own checks, and save the sheet or export a PDF with your title block.
