Column slenderness and the slenderness limit

Slenderness ratio of a rectangular column and the limit below which second order effects may be ignored. Reference: EN 1992-1-1 5.8.3.1, 5.8.3.2.

Open this sheet in Equation Pad Browse the Library

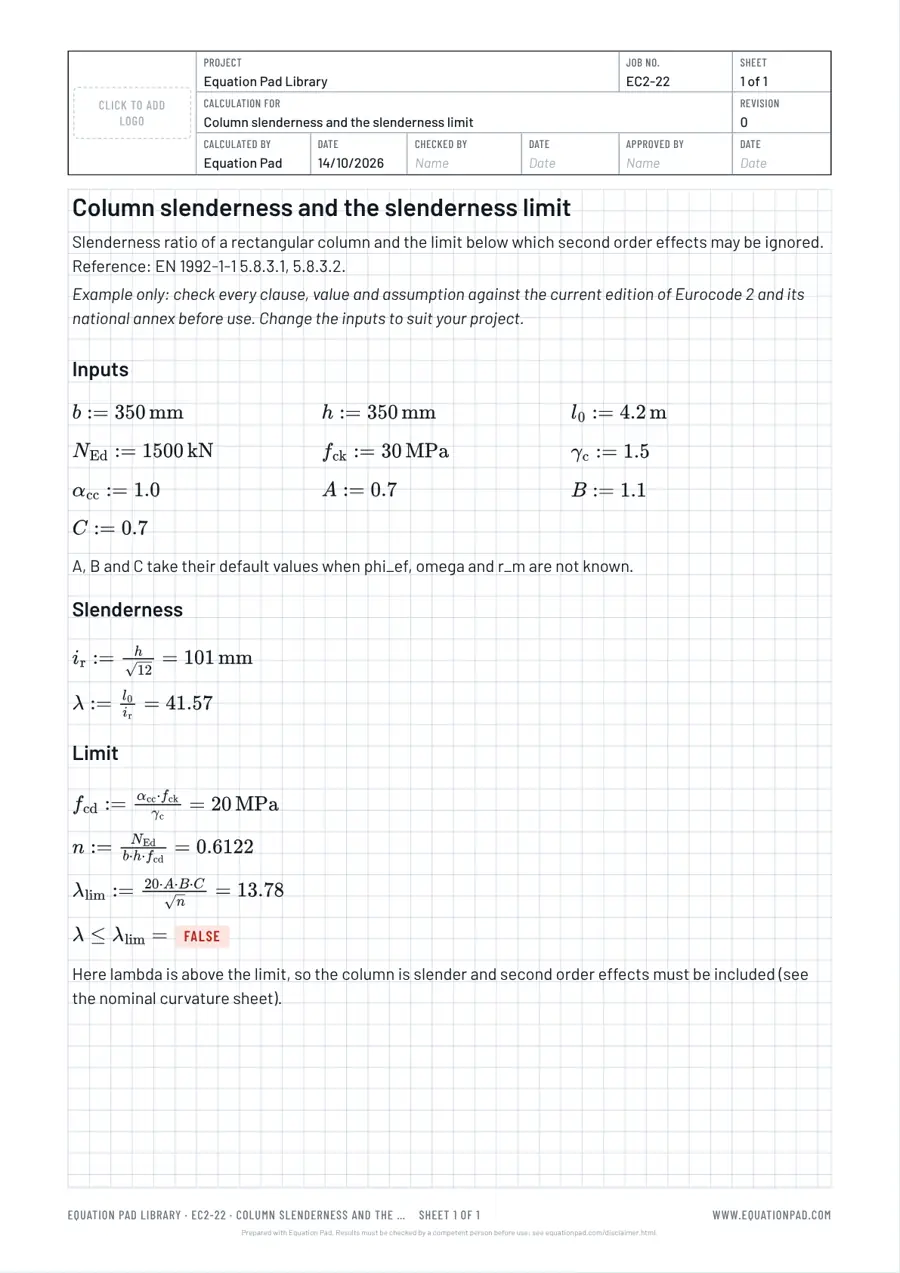

Column slenderness and the slenderness limit: worked example sheet in Equation Pad with typeset equations and results.

Example only. This sheet shows one way to set out the check. It is not endorsed by the bodies that publish the design codes and does not reproduce them. Check every clause, value and assumption against your own copy of the current edition of Eurocode 2 and its national annex before you use it, and have the result checked by a competent person. See the disclaimer.

The calculation, line by line

Every line below is typed into Equation Pad exactly as shown; the app typesets it, works out the value with its units and shows checks as TRUE or FALSE. Change any input and everything below it updates.

# Inputs
b := 350 mm
h := 350 mm
l_0 := 4.2 m
N_Ed := 1500 kN
f_ck := 30 MPa
gamma_c := 1.5
alpha_cc := 1.0
A := 0.7
B := 1.1
C := 0.7
# A, B and C take their default values when phi_ef, omega and r_m are not known.

# Slenderness
i_r := h/sqrt(12) =
lambda := l_0/i_r =

# Limit
f_cd := alpha_cc*f_ck/gamma_c =
n := N_Ed/(b*h*f_cd) =
lambda_lim := 20*A*B*C/sqrt(n) =
lambda <= lambda_lim =
# Here lambda is above the limit, so the column is slender and second order effects must be included (see the nominal curvature sheet).

How to use this example

  1. Click Open this sheet in Equation Pad. It opens as a new worksheet in your browser; nothing is installed.
  2. Change the inputs at the top to those of your project.
  3. Check the clauses and coefficients against the code, add your own checks, and save the sheet or export a PDF with your title block.
