Peak velocity pressure of wind

Basic wind velocity, roughness and turbulence and the peak velocity pressure at a height on flat terrain category II. Reference: EN 1991-1-4 4.2, 4.3, 4.4, 4.5.

Open this sheet in Equation Pad Browse the Library

Example only. This sheet shows one way to set out the check. It is not endorsed by the bodies that publish the design codes and does not reproduce them. Check every clause, value and assumption against your own copy of the current edition of Eurocode 1 and its national annex before you use it, and have the result checked by a competent person. See the disclaimer.

The calculation, line by line

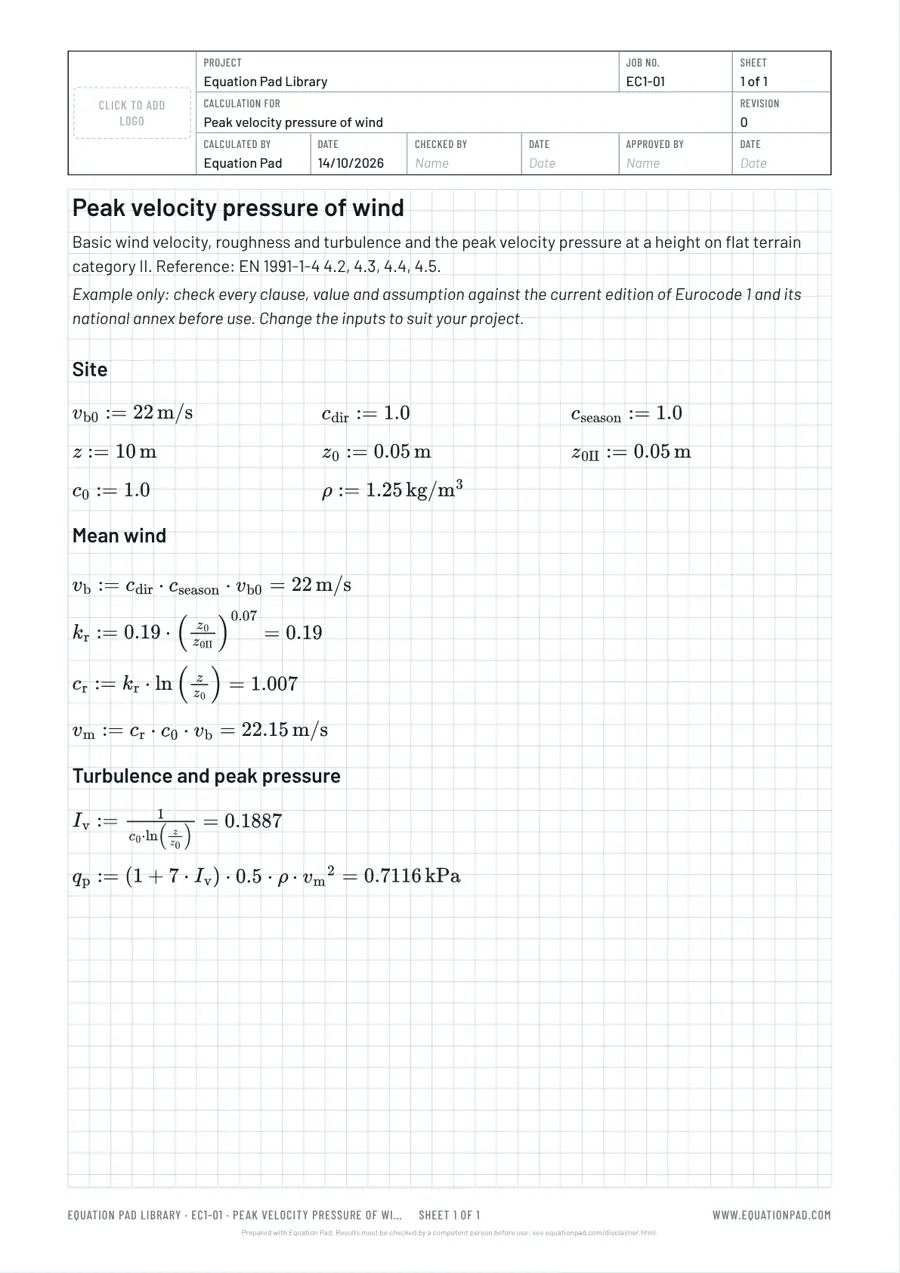

Every line below is typed into Equation Pad exactly as shown; the app typesets it, works out the value with its units and shows checks as TRUE or FALSE. Change any input and everything below it updates.

# Site
v_b0 := 22 m/s
c_dir := 1.0
c_season := 1.0
z := 10 m
z_0 := 0.05 m
z_0II := 0.05 m
c_0 := 1.0
rho := 1.25 kg/m^3

# Mean wind
v_b := c_dir*c_season*v_b0 =
k_r := 0.19*(z_0/z_0II)^0.07 =
c_r := k_r*log(z/z_0) =
v_m := c_r*c_0*v_b = m/s

# Turbulence and peak pressure
I_v := 1/(c_0*log(z/z_0)) =
q_p := (1 + 7*I_v)*0.5*rho*v_m^2 = kPa

How to use this example

1. Click Open this sheet in Equation Pad. It opens as a new worksheet in your browser; nothing is installed.
2. Change the inputs at the top to those of your project.
3. Check the clauses and coefficients against the code, add your own checks, and save the sheet or export a PDF with your title block.
